Mountain Bikes Enduro Torque Torque

Torque DH CLLCTV

Name: Torque DH CLLCTV
Brand: Canyon
Price: 19500.00 CNY
Availability: OutOfStock
Rating: 4 (3 reviews)

-17%

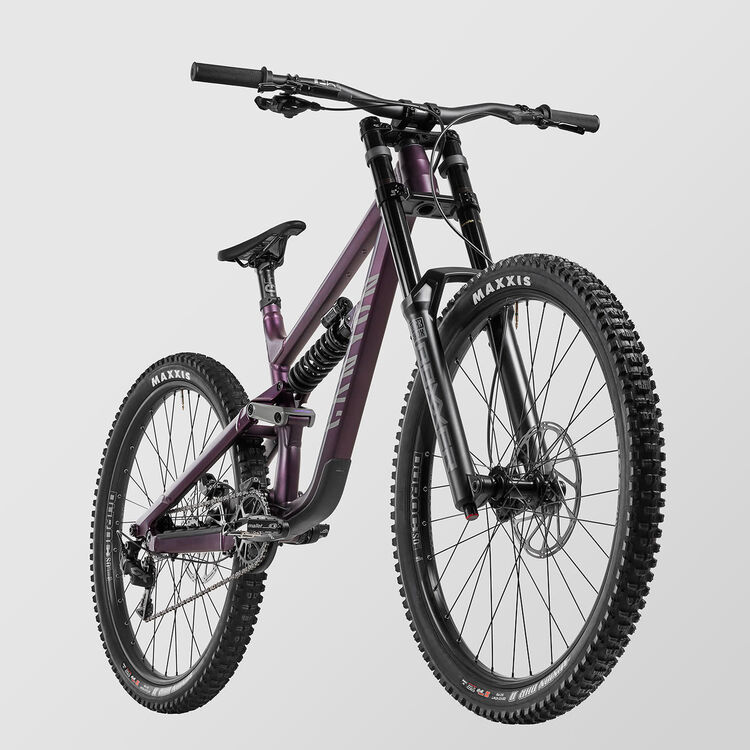

The Canyon Torque DH CLLCTV is our full blown freeride mountain bike. It’s all about grin-inducing speed, adrenaline-pumping sends, and head-turning style. Made with a proven frame and decked out with tough downhill components, the Torque DH CLLCTV is big hit freeriding perfected.

Front Fork Travel: 190 mm
Weight: 17.1 kg

Reviews (3)

Colour: CLLCTV Dark Purple

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Torque DH CLLCTV

Key features

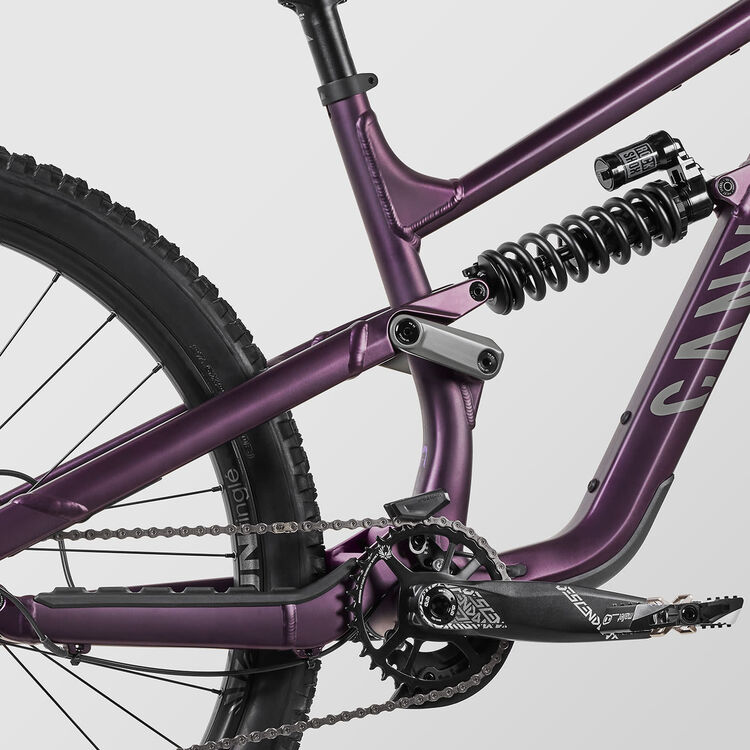

AL – metal rules

Meet the next generation of robust, high-performance aluminium frames. Like its carbon counterpart, the AL frame meets our Category 5 testing standards and is ready for the most demanding trails and biggest jumps. Thanks to its updated tube shapes, the new frame is 200 g lighter than its predecessor while still improving stiffness.

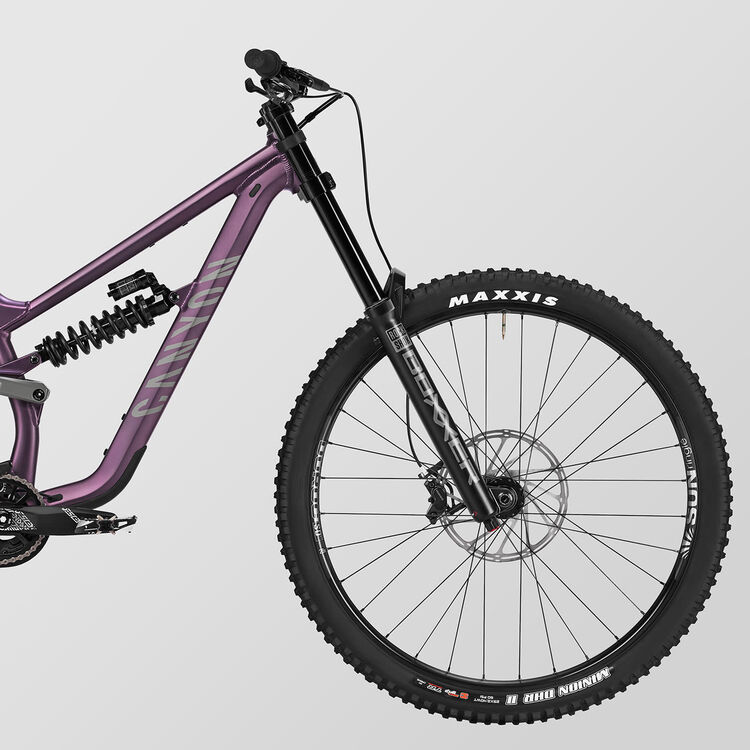

Next level capability

Ride faster and smoother on the most technical singletrack thanks to the Torque’s new progressive geo. Rocking a slacker head angle, and a longer reach and wheelbase, the Torque AL doesn’t use the same flip chip as the CF model, opting for a 63.5° head angle for maximum stability.

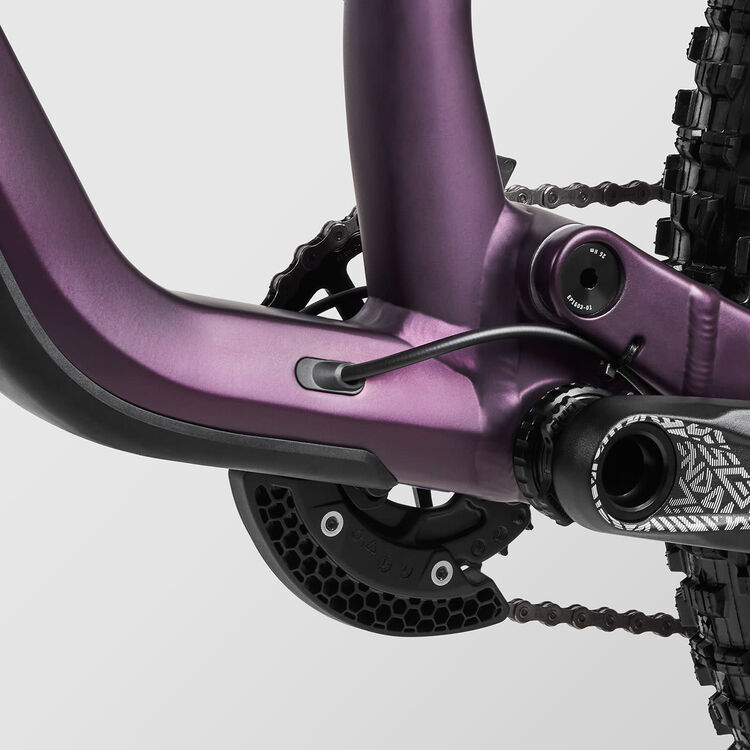

Clever cable routing

The bike’s cables and lines run cleanly through a foam hose inside the front triangle. This eliminates cable rattle in technical terrain and protects your cables from the elements. The cables are then externally routed on the rear triangle for easier maintenance.

Freeride meets downhill

Kitted with a burly dual crown fork and a complete downhill spec, this Torque is an absolute beast. Whether you aspire to send it at the Fest series, huck gaps at Rampage or become the next great privateer on the DH circuit, this bike will get you down every track and over any gap.

Components

Content is loading

Frame

Frame
- Canyon Torque AL
- Aluminium long-travel freeride frame built for seasons-long hard riding at the bike park and in the big mountains. Frame category 5.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,190 g
Rear Shock
- ROCK SHOX VIVID Coil Select
Suspension Fork
- RockShox Boxxer Base
- Axle dimension: 20x110 mm
- Travel: 190 mm
- Fork steer tube diameter: 1 1/8"
- Weight: 2,980 g

Drivetrain

Rear Derailleur
- SRAM GX DH 7s
- Cage length: medium
- Weight: 273 g
Chainguard
- e13 Vario Compact Slider DMB
Shift Lever
- SRAM GX DH Trigger 7s
- Weight: 125 g
Cassette
- SRAM PG-720 DH 11-25 7s
- Number of sprockets: 7
- Range: 11-25
Crank
- Descendant 6K
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Chain
- SRAM PC 1110 11s

Brakes

Disc Brake
- SRAM Code R
Disc Brake
- SRAM Code R
Brake Rotor
- SRAM Centerline
- Size: 200 mm
- Weight: 190 g
Brake Rotor
- SRAM Centerline
- Size: 220 mm
- Weight: 223 g

Wheels

Front Wheel
- Sun Ringle Duroc
- Axle dimension: 20x110 mm
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 1,060 g
Rear Wheel
- Sun Ringle Duroc SH11
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 1,150 g
Tyre
- Maxxis Minion DHR II 2.4"
- Width: 2.4"
- Weight: 900 g
Tyre
- Maxxis Minion DHR II 2.4" Wide Trail
- Width: 2.4"
- Weight: 950 g
Thru Axle
- Canyon GP0255-01
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon G5
- G5 aluminium stem for double-crown forks. Developed with Canyon downhill pros, proven on the world’s toughest stages. Length: 45 mm.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Rise: 30 mm
Grips
- Canyon G5

Seat

Saddle
- Ergon SMD20
- Weight: 315 g
Seatpost
- Canyon G5
- Canyon G5 aluminium seatpost. Length: 300 mm.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 270 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide Torque M113
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 177	172 - 185	180 - 194	≥ 189
Seat Height in mm (a)	553 - 653	588 - 688	588 - 688	593 - 693
Seat Tube Length in mm (b)	395	430	430	435
Top Tube Length in mm (c)	567	594	620	647
Head Tube Length in mm (d)	95	105	110	130
Head Tube Angle (e)	63,5°	63,5°	63,5°	63,5°
Seat Tube Angle (f)	78°	78°	78°	78°
Chainstay Length in mm (g)	424	424	424	424
Wheel Base in mm (h)	1.202	1.231	1.261	1.290
Stack in mm (i)	619	628	637	646
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	758	764	766	773
Bottom Bracket Offset in mm (l)	30	30	30	30

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0
Stem Length in mm	45	45	45	45
Handlebar Width in mm	780	780	800	800
Crank Length in mm	170,0	170,0	170,0	170,0
Chainring Size	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Seat Post Length in mm	300	300	300	300
Maximum Seat Post Insertion Depth in mm	190	190	190	190
Minimum Seat Post Insertion Depth in mm	90	90	90	90
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	220 / 200	220 / 200	220 / 200	220 / 200
Front Fork Travel in mm	190	190	190	190
Rear Suspension Travel in mm	175	175	175	175
Rear shock spring rate	300	350	400	450
Fitting Length	250X70	250X70	250X70	250X70

Download PDF

Content is loading

Torque DH CLLCTV support

-27%

Canyon Sideloader Carbon Bottle Cage

From ¥189

Original price ~~¥259~~

Save up to ¥70

Canyon Undershorts with D3O Protector

¥509

Canyon MTB Shorts

¥729

-32%

Canyon CLLCTV Summer Snapback Cap

¥149

Original price ~~¥219~~

You save ¥70

-41%

Canyon CLLCTV Mechanic Men's Short Sleeve Shirt

¥219

Original price ~~¥369~~

You save ¥150

Bike classification

These bikes can be used by technically adept and experienced riders to tackle very challenging, extremely steep terrain with a high number of obstacles. In this category, big jumps are to be expected as well as intensive use in bike parks or on downhill courses. It is essential that these bikes are fully examined for any potential damage after every ride. Further use when using damaged parts could lead to a major component malfunction. In addition, safety-relevant parts should be replaced at regular intervals. Wearing appropriate protective gear is absolutely essential. This category includes long-travel full-suspension bikes as well as dirt bikes.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
