Commuter
-
                    -13%
¥10,900
Original price
You save ¥1,700


                Built-in pedal-powered lights. Lightweight fenders and a rear rack. A striking and modern design. The Commuter comes out of the box fully-equipped with everything you need for riding in the city. Turn your morning commute into a daily joyride.



    -

                    Weight:
                    13.52 kg





                        Weight is based on a size M frame.
- Material: Aluminium (AL)

                    Colour:


                    Stealth



        -

                            Colour: Stealth
-




    Members only product. Log in here

                    Select frame size





                        Delivery:

                            Select frame size




















                            Members only product.




    Log in here







        Additional information









        Current delivery times information.

        Read more














        Not included:


    -


                        Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-


                        That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
 Learn more


                        Delivery:

                            Select frame size







            Highlights Commuter

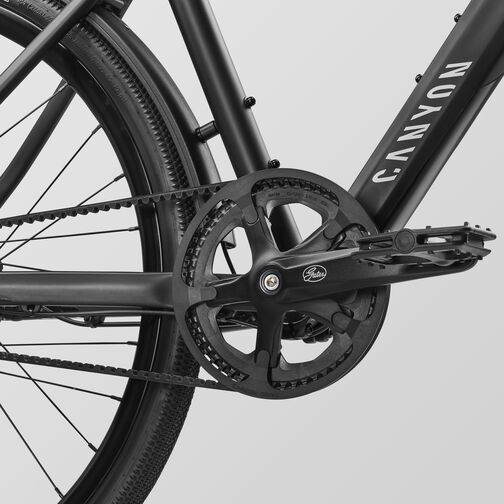

Belt drive and minimal maintenance
                                    We replaced the traditional chain with a Gates carbon belt drive to minimise maintenance. You can expect a regularly cleaned belt drivetrain to last upwards of 30000km and no oily marks on your clothes.


                        Just start riding

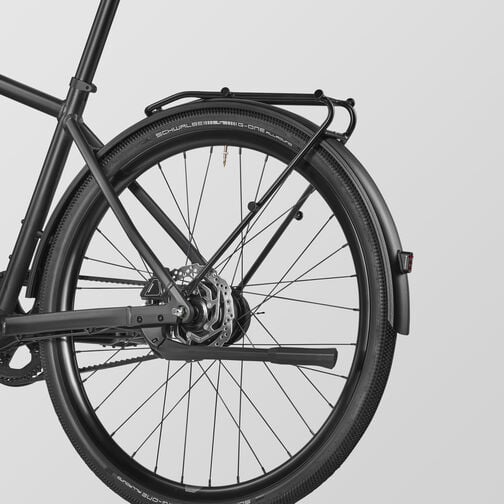

                                    Ready for the city streets, the Commuter comes equipped with everything you need for riding in the urban environment . With front and tail lights ensuring you see and are seen, fenders keeping you dry, a rack to carry your luggage, and a kickstand for easy parking, this bike has you covered for wherever you want to go and whatever you want to get done.



                                    Content is loading

                            Frame
-
                                Frame- Canyon U022 Commuter Step-over
- A versatile and reliable urban bike designed for daily commuting. Equipped with features for comfort, efficiency, and practicality.
- Axle dimension: 10x135 mm
- Material: Aluminium (AL)
- Weight: 1,800 g

-
                                Fork- Canyon FK83 Carbon Fork
- Light and robust carbon fork
- Fork steer tube diameter: 1 1/8"
- Material: Carbon (CF)
- Weight: 460 g

Drivetrain
-
                                Hub gear- Shimano Nexus SG-C6001 Gear Hub

-
                                Shift Lever- Shimano Nexus Revoshift
- Weight: 126 g

-
                                Crank- Gates CDN S150
- Number of chainrings: 1

-
                                Bottom bracket- Thun BSA Zumba JIS
- Weight: 290 g

-
                                Chain- Gates CDN Belt

Brakes
-
                                Disc Brake- Shimano MT200/UR300 front brake
- Number of pistons: 2

-
                                Disc Brake- Shimano MT200/UR300 rear brake
- Number of pistons: 2

-
                                Brake Rotor- Shimano RT10
- Size: 160 mm
- Weight: 178 g

Wheels
-
                                Front Wheel- Alexrims GX26P with Shimano DH-3D37 Dynmao Hub
- Axle dimension: 9x100 mm
- Rotor mount: Center Lock
- Rim material: Aluminium
- Weight: 1,400 g

-
                                Rear Wheel- Alexrims GX26P with Shimano Nexus SG-C6001 Gear Hub 8-Speed
- Axle dimension: 10x135 mm
- Rotor mount: IS 6-bolt
- Inner width: 20 mm
- Rim material: Aluminium
- Weight: 2,200 g

-
                                Tyre- Schwalbe G-One Allround Performance Race Guard TLE
- Width: 40 mm
- Weight: 450 g

Cockpit
-
                                Cockpit- Canyon CP16 Cockpit
- Sleek one-piece aluminium cockpit with semi-integrated design and internally routed cables.
- Material: Aluminium (AL)
- Weight: 359 g

-
                                Grips- Ergon GA3 Wing Twist

-
                                Bells- Knog Oi Classic

Seat
-
                                Saddle- Selle Royal Essenza
- Weight: 342 g

-
                                Seatpost- Canyon Seatpost
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)

-
                                Seat Clamp- Canyon SC0001

Light
-
                                Lights- Supernova E3 Pure - front

-
                                Lights- SUNO FENDER HOLDER FRONT LIGHT

-
                                Lights- Supernova E3 Tail Light - rear

Accessories
-
                                Bikestands- Atran Edge HV

-
                                Pedals- Femin FP-803

-
                                Fender- ALUMEE Fender Set

-
                                Manuals and Accessories- Canyon Organza Bag

-
                                Manuals and Accessories- Wrench Tool 15mm

-
                                Manuals and Accessories- Canyon Smallbox

                                    Content is loading


                Content is loading

        |

                                                    Body Height in cm



                                             | 168 - 178 | 178 - 188 |
|---|---|---|
|

                                                    Seat Height in mm


                                                        (a)


                                             | 568 - 798 | 613 - 843 |
|

                                                    Seat Tube Length in mm


                                                        (b)


                                             | 440 | 485 |
|

                                                    Top Tube Length in mm


                                                        (c)


                                             | 588 | 619 |
|

                                                    Head Tube Length in mm


                                                        (d)


                                             | 155 | 190 |
|

                                                    Head Tube Angle


                                                        (e)


                                             | 73,5° | 73,5° |
|

                                                    Seat Tube Angle


                                                        (f)


                                             | 73,5° | 73,5° |
|

                                                    Chainstay Length in mm


                                                        (g)


                                             | 425 | 425 |
|

                                                    Wheel Base in mm


                                                        (h)


                                             | 1.054 | 1.086 |
|

                                                    Stack in mm


                                                        (i)


                                             | 557 | 591 |
|

                                                    Reach in mm


                                                        (j)


                                             | 423 | 444 |
|

                                                    Stand-over Height in mm


                                                        (k)


                                             | 740 | 770 |
|

                                                    Bottom Bracket Offset in mm


                                                        (l)


                                             | 60 | 60 |
|

                                                    Spacer in mm



                                             | 40 | 40 |
|---|---|---|
|

                                                    Cockpit Dimensions in mm



                                             | 80-630 | 80-630 |
|

                                                    Crank Length in mm



                                             | 170,0 | 170,0 |
|

                                                    Chainring Size



                                             | 55 | 55 |
|

                                                    Seat Post Diameter in mm



                                             | 30,9 | 30,9 |
|

                                                    Seat Post Length in mm



                                             | 400 | 400 |
|

                                                    Maximum Seat Post Insertion Depth in mm



                                             | 320 | 320 |
|

                                                    Minimum Seat Post Insertion Depth in mm



                                             | 90 | 90 |
|

                                                    Wheel Size



                                             | 27.5" | 27.5" |
|

                                                    Disc Size in mm



                                             | 160 / 160 / 160 | 160 / 160 / 160 |



                            Download PDF




                    Content is loading

            Commuter support
Other riders also bought


                ¥859








                ¥219








                ¥289








                ¥369





            Original price


                You save ¥360







                ¥259





                -


                        Colour: Stealth
-


                        Colour: black
-


                        Colour: white
-


                        Colour: grey






            Additional 10% off with code "OUTLET10"










                ¥129





            Original price


                You save ¥60







                ¥659





                Bike classification
Bikes of category 2 are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
