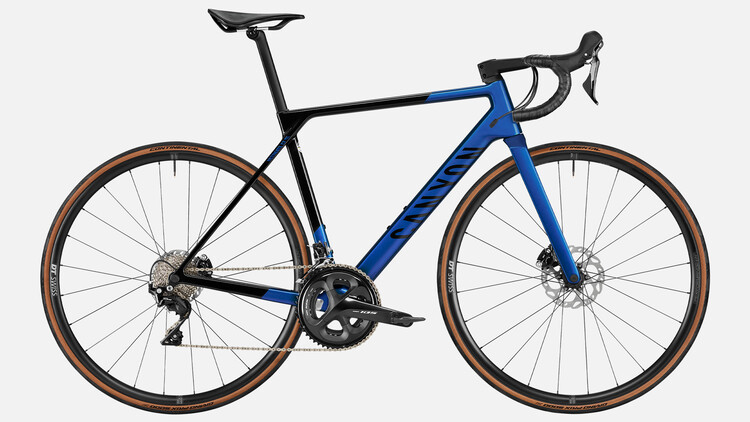

Ultimate CF SL 7
- Material: Carbon (CF)
-
Weight:
8.22 kg
WeightWeight is based on a size M frame.
-
-
Members only product. Log in here
Highlights Ultimate CF SL 7

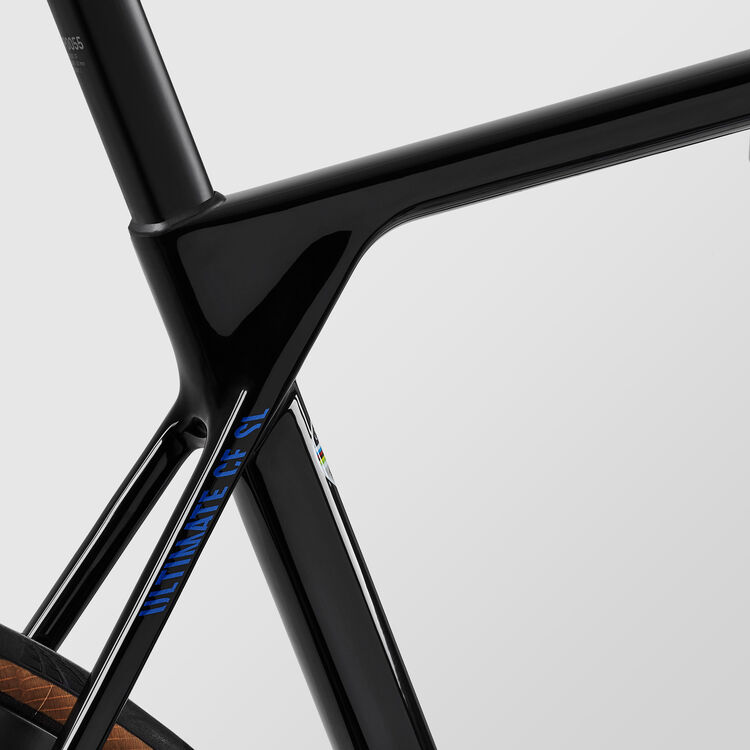

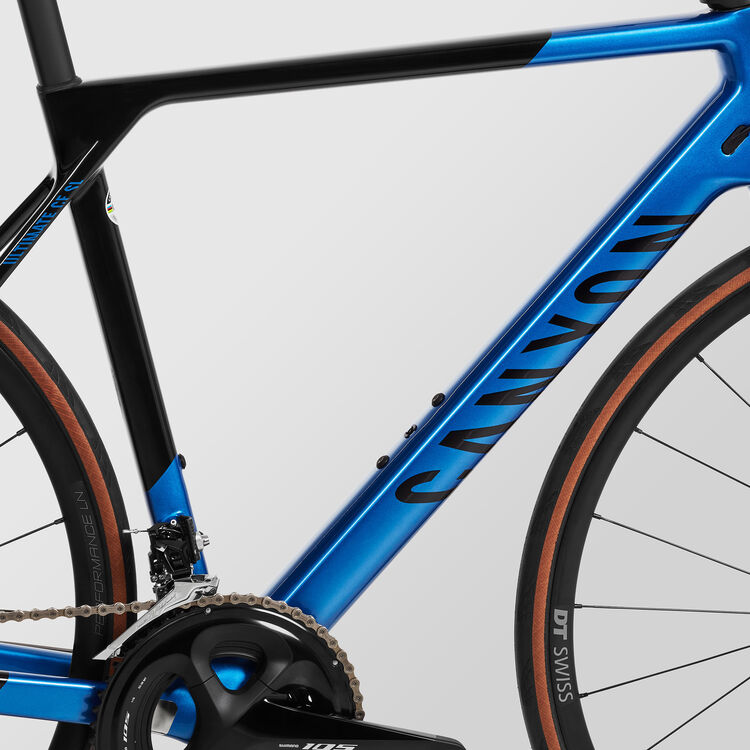

Frame
-
Frame
- Canyon Ultimate CF SL
- Our latest 5th-generation Ultimate frame.
- Axle dimension: 12x142 mm
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 1,050 g
-

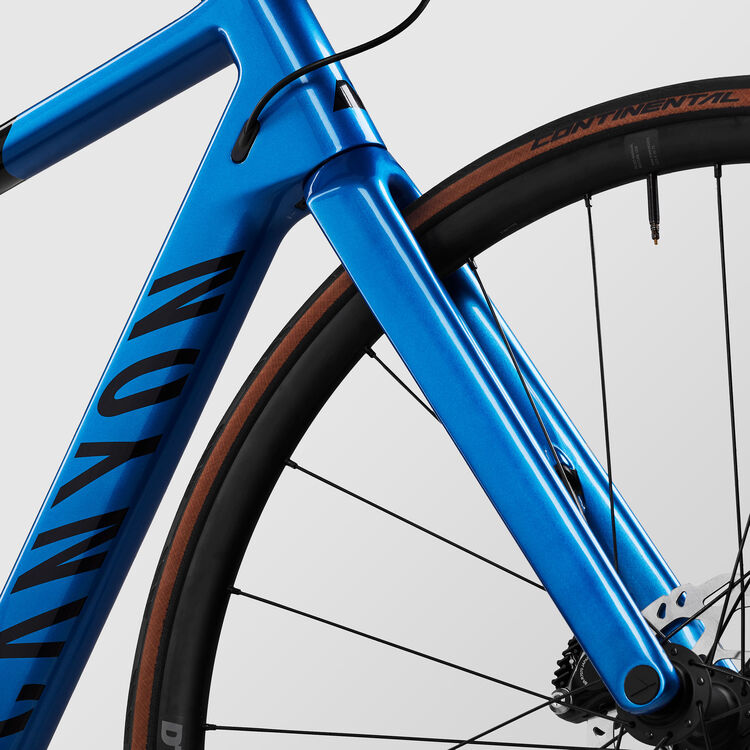

Fork
- Canyon FK0105 CF
- Carbon fork optimised for lightness, stiffness, and strength.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 410 g
Drivetrain
-
Rear Derailleur
- Shimano 105 R7000 SS
- Weight: 232 g
-
Front Derailleur
- Shimano 105 R7000
- Weight: 94 g
-
Cassette
- Shimano 105 R7000 11-30 11s
- Number of sprockets: 11
- Range: 11-30
-
Crank
- Shimano 105 R7000
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano CN-HG701 11s
Brakes
-
Shift-/ Brake Lever
- Shimano 105 R7020, 2-speed
- Weight: 564 g
-
Shift-/ Brake Lever
- Shimano 105 R7020, 11-speed
- Weight: 551 g
-
Brake Rotor
- Shimano Bremsscheibe
- Size: 140 mm
- Weight: 134 g
-
Brake Rotor
- Shimano SM-RT70
- Size: 160 mm
- Weight: 147 g
Wheels
-
Front Wheel
- DT Swiss Performance LN
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 20 mm
- Rim material: Aluminium
- Weight: 837 g
-
Rear Wheel
- DT Swiss Performance LN HG
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 20 mm
- Rim material: Aluminium
- Weight: 984 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 245 g
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit

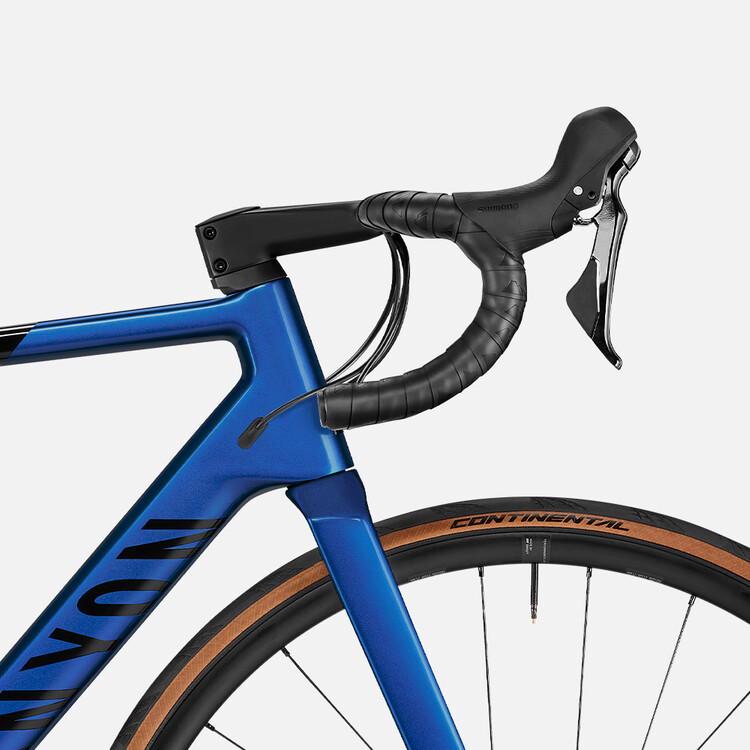

- Canyon H36 Aerocockpit
- A one-piece cockpit with top-end aerodynamics, semi-integrated cable routing, and premium ergonomics for comfort and precise handling.
- Material: Carbon (CF)
- Weight: 365 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
-

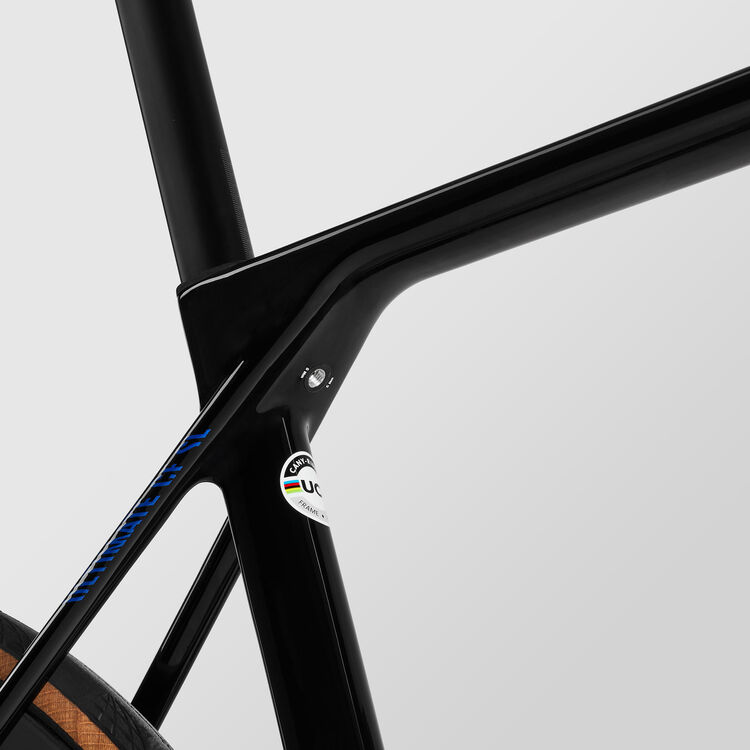

Seatpost
- Canyon SP0055
- Custom carbon seatpost with aerodynamic D-shape profile.
- Seatpost diameter: 27,2 mm
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 108 g
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Quick Start Guide
Body Height in cm
|
≤ 160 | 160 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | 196 - 204 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
594 - 694 | 624 - 724 | 654 - 754 | 684 - 784 | 714 - 814 | 744 - 844 | 774 - 874 | 804 - 904 |
Seat Tube Length in mm
(b)
|
390 | 420 | 450 | 480 | 510 | 540 | 570 | 600 |
Top Tube Length in mm
(c)
|
497 | 516 | 529 | 546 | 555 | 569 | 594 | 610 |
Head Tube Length in mm
(d)
|
104 | 115 | 107 | 121 | 142 | 162 | 188 | 206 |
Head Tube Angle
(e)
|
70,2° | 71,5° | 71,2° | 72,8° | 73,3° | 73,3° | 73,5° | 73,8° |
Seat Tube Angle
(f)
|
73,9° | 73,9° | 73,9° | 73,9° | 73,9° | 73,9° | 73,9° | 73,9° |
Chainstay Length in mm
(g)
|
405 | 405 | 410 | 410 | 410 | 413 | 415 | 415 |
Wheel Base in mm
(h)
|
958 | 965 | 979 | 983 | 987 | 1.004 | 1.029 | 1.042 |
Stack in mm
(i)
|
483 | 498 | 520 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
358 | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
697 | 720 | 748 | 775 | 801 | 828 | 851 | 874 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
558 | 572 | 596 | 613 | 635 | 656 | 681 | 701 |
Reach+ in mm
|
415 | 430 | 445 | 459 | 473 | 491 | 509 | 530 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
90-390 | 90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-430 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
316 | 316 | 316 | 316 | 316 | 316 | 316 | 316 |
Maximum Seat Post Insertion Depth in mm
|
160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
Minimum Seat Post Insertion Depth in mm
|
60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 140 / 140 | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 160 | 160 / 160 |
Ultimate CF SL 7 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
