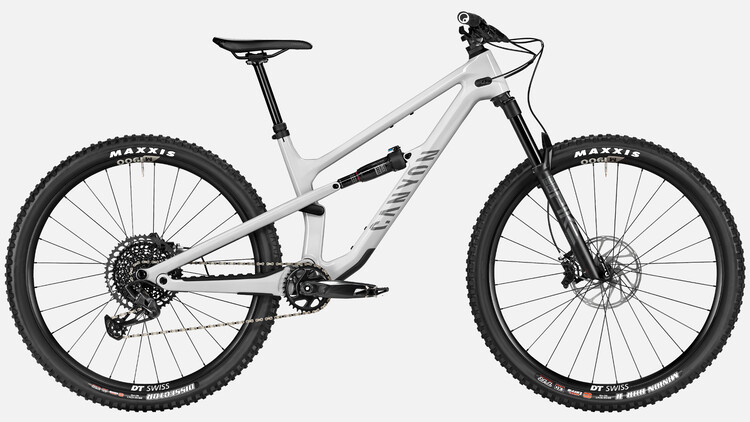

Spectral 125 CF 7
A short-travel trail bike that loves to cut loose. The Spectral 125 is a poppy, playful, and surprisingly capable carbon trail bike that makes any trail its playground.
- Front Fork Travel: 140 mm
-
Weight:
13.9 kg
WeightWeight is based on a size medium frame.
-
- Colour: Big Bamboo
- Colour: 4Seasons
-
Members only product. Log in here
Select frame size
Sold out
Members only product.
Log in here
Sold out
Highlights Spectral 125 CF 7

A wolf in sheep’s clothing
Don’t let the numbers mislead you: the Spectral 125 extracts huge performance from its 140 mm front and 125 mm rear travel. With its modern, progressive geometry, this bike’s long, low, slack, and ready to shred. For confidence on steep descents and at high speeds on rough terrain, it features a slackened 64-degree head tube angle and an extended reach.

Durability-boosting smart features
Spend more time in the saddle and less time in the workshop – we designed the Spectral 125 to be as durable and reliable as possible. Internal cable routing makes replacing cables and lines super-easy, and robust double-sealed industrial bearings, a special grease compound, and replaceable thread inserts all improve durability.

Geo adjust
The 2-position (LO/HI) Flip Chip shock mount offers 0.5 degrees of adjustment to head tube and seat tube angles, and changes BB height by 8 mm. Bikes come as standard in the LO setting, for increased downhill stability and confidence. Switch to HI for more ground clearance on technical climbs, as well as a direct handling feel.
Content is loading
Frame
-
Frame
- Canyon Spectral 125 CF
- Lightweight, capable, agile short-travel MTB designed to extract maximum capability from its 125 mm rear travel. Category 4.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,565 g
-
Rear Shock
- RockShox Deluxe Select+
- Weight: 375 g
-
Suspension Fork
- RockShox Pike Select
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 2,340 g
Drivetrain
-
Rear Derailleur
- SRAM GX Eagle
- Cage length: long
- Weight: 300 g
-
Shift Lever
- SRAM GX Eagle
- Weight: 128 g
-
Cassette
- SRAM GX Eagle, 12-speed, 10-52T
- Number of sprockets: 12
- Range: 10-52
-
Crank
- SRAM X1 Eagle
- Number of chainrings: 1
-
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
-
Chain
- SRAM GX Eagle 12s
Brakes
-
Disc Brake
- SRAM Code RS
-
Disc Brake
- SRAM Code RS
-
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 168 g
-
Brake Rotor
- SRAM Centerline
- Size: 200 mm
- Weight: 190 g
Wheels
-
Front Wheel
- DT Swiss M1900
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 960 g
-
Rear Wheel
- DT Swiss M1900
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Weight: 1,072 g
-
Tyre
- Maxxis Dissector
- Width: 2.4"
- Weight: 948 g
-
Tyre
- Maxxis Minion DHR II Exo
- Width: 2,4"
- Weight: 1,035 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Ergon GE10 Evo Slim
Seat
-
Saddle
- Ergon SM10 Enduro
- Gender: Unisex
- Weight: 314 g
-
Seatpost
- Canyon G5
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 534 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
---|---|---|---|---|
Seat Height in mm
(a)
|
635 - 770 | 680 - 805 | 725 - 850 | 750 - 875 |
Seat Tube Length in mm
(b)
|
395 | 420 | 435 | 460 |
Top Tube Length in mm
(c)
|
587 | 615 | 642 | 669 |
Head Tube Length in mm
(d)
|
110 | 120 | 130 | 140 |
Head Tube Angle
(e)
|
64,5° | 64,5° | 64,5° | 64° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
437 | 437 | 437 | 437 |
Wheel Base in mm
(h)
|
1.200 | 1.230 | 1.259 | 1.288 |
Stack in mm
(i)
|
613 | 622 | 632 | 641 |
Reach in mm
(j)
|
435 | 460 | 486 | 511 |
Stand-over Height in mm
(k)
|
758 | 762 | 767 | 768 |
Bottom Bracket Offset in mm
(l)
|
35 | 35 | 35 | 35 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 170 | 200 | 200 |
Seat Post Length in mm
|
417 | 457 | 517 | 517 |
Maximum Seat Post Insertion Depth in mm
|
225 | 245 | 275 | 275 |
Minimum Seat Post Insertion Depth in mm
|
90 | 120 | 150 | 150 |
Wheel Size
|
29" | 29" | 29" | 29" |
Disc Size in mm
|
200 / 180 | 200 / 180 | 200 / 180 | 200 / 180 |
Front Fork Travel in mm
|
140 | 140 | 140 | 140 |
Rear Suspension Travel in mm
|
125 | 125 | 125 | 125 |
Fitting Length
|
210X50 | 210X50 | 210X50 | 210X50 |
Download PDF
Content is loading
Spectral 125 CF 7 support
Other riders also bought
¥109
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
