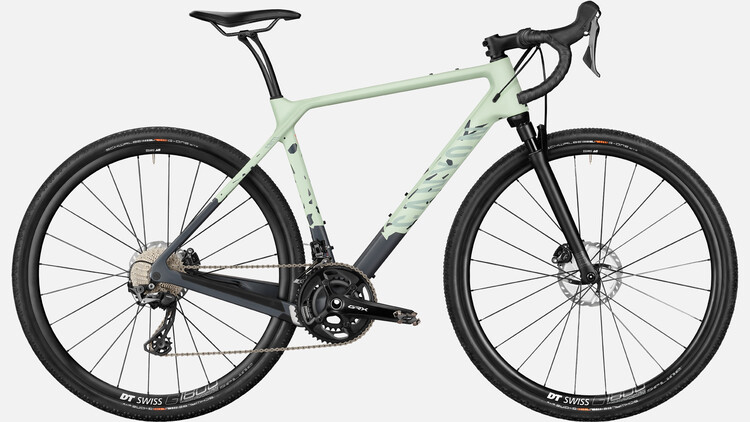

Grizl CF SL 8 Suspension
-
- Colour: Earl Grey
-
Members only product. Log in here
Highlights Grizl CF SL 8 Suspension

Gravel-specific suspension fork

50 mm tyre clearance
Frame
-
Frame
- Canyon Grizl CF SL
- Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability.
- Versatile frame designed for maximum utility. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 1035 g (size M).
-

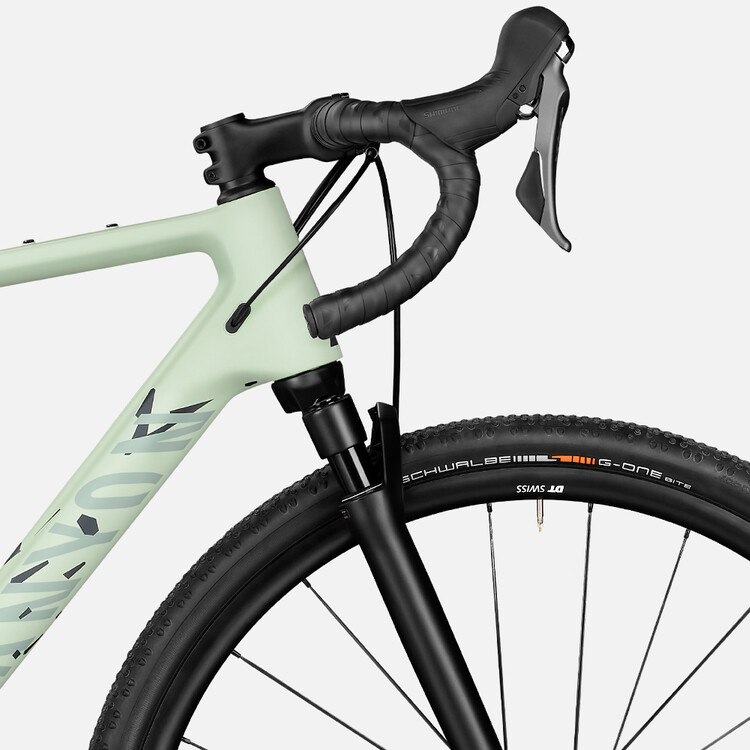

Suspension Fork
- RockShox Rudy 30
- Axle dimension: 12x100 mm
- Stanchion Diameter: 30 mm
- Travel: 30 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 50 mm
- Weight: 2,300 g
Drivetrain
-
Rear Derailleur
- Shimano GRX RX810 GS
- Cage length: long
- Weight: 252 g
-
Front Derailleur
- Shimano GRX RX810
- Max chainring gear range: 17T.
- Weight: 101 g
-
Cassette
- Shimano Ultegra HG800 11-34 11s
- Number of sprockets: 11
-
Crank
- Shimano GRX810
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Shift-/ Brake Lever
- Shimano GRX RX810, 2-speed
- Weight: 560 g
-
Shift-/ Brake Lever
- Shimano GRX RX810, 11-speed
- Weight: 541 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- DT Swiss G1800 Spline db
- Rotor mount: Center Lock
- Rim height: 25 mm
- Weight: 880 g
-
Rear Wheel
- DT Swiss G1800 Spline db SH11
- Rotor mount: Center Lock
- Rim height: 25 mm
- Weight: 10 g
-
Tyre
- Schwalbe G-One Bite 45mm
- Width: 45 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm
Cockpit
-
Stem
- Canyon V13
- High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4".
- Fork steer tube diameter: 1 1/4"
- Clamping diameter: 31,8 mm
-
Handlebar
- Canyon HB0063
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter: 31,8 mm
- Width: 440 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Argo Terra X5
- Gender: Unisex
- Weight: 271 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Canyon Quick Start Guide
Body Height in cm
|
≤ 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
552 | 564 | 578 | 602 | 617 |
Head Tube Length in mm
(d)
|
118 | 138 | 164 | 185 | 204 |
Head Tube Angle
(e)
|
71° | 72,25° | 72,5° | 72,75° | 72,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.036 | 1.037 | 1.050 | 1.072 | 1.086 |
Stack in mm
(i)
|
556 | 579 | 605 | 626 | 644 |
Reach in mm
(j)
|
397 | 402 | 409 | 427 | 436 |
Stand-over Height in mm
(k)
|
789 | 816 | 845 | 870 | 892 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 | 75 | 75 |
Stack+ in mm
|
642 | 666 | 693 | 714 | 733 |
Reach+ in mm
|
444 | 461 | 478 | 497 | 515 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|
Stem Length in mm
|
70 | 80 | 90 | 90 | 100 |
Handlebar Width in mm
|
420 | 440 | 440 | 460 | 460 |
Crank Length in mm
|
170,0 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
48/31 | 48/31 | 48/31 | 48/31 | 48/31 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Front Fork Travel in mm
|
30 | 30 | 30 | 30 | 30 |
Grizl CF SL 8 Suspension support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
