Endurace 6 DISC
-
Refurbished bike in M
-
Colour: airwave blue -
Members only product. Log in here
Highlights Endurace 6 DISC
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda
Frame
-
Frame
- Canyon Endurace AL Disc
- Material: Aluminium 6061
- Axle Dimension: 12 x 142 mm
- Brake Mount: Flat Mount
-

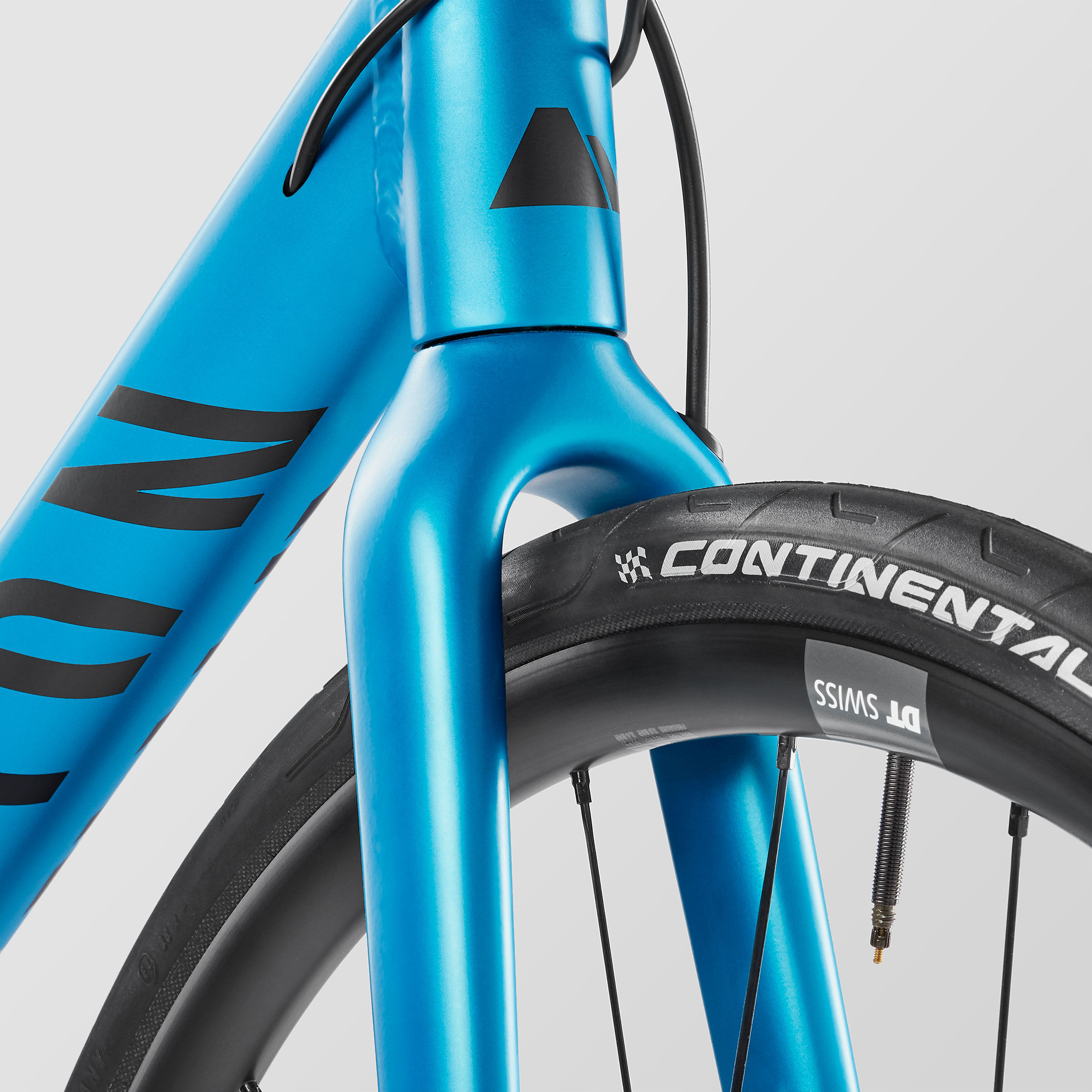

Fork
- Canyon FK0042 CF Disc
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 450 g
Drivetrain
-
Rear Derailleur
- Shimano Tiagra R4720
- Cage length: medium
- Weight: 275 g
-
Front Derailleur
- Shimano Tiagra 4700
- Weight: 107 g
-
Cassette
- Shimano HG500 11-34 10s
- Number of sprockets: 10
- Range: 11-34
-
Crank
- Shimano Tiagra 4700
- Number of chainrings: 2
-
Bottom bracket
- Shimano BSA BB-R60
- Bottom bracket standard: BSA 68
- Weight: 77 g
-
Chain
- KMC Connection Link 10s
-
Chain
- KMC X10-93 10s
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Tiagra R4720 2s
- Weight: 621 g
-
Shift-/ Brake Lever
- Shimano Tiagra R4720 10s
- Weight: 621 g
-
Brake Rotor
- Shimano RT70
- Size: 160 mm
- Weight: 150 g
Wheels
-
Front Wheel
- DT Swiss E 1850 Spline db
- Rotor mount: Center Lock
- Weight: 1,250 g
-
Rear Wheel
- DT Swiss E 1850 Spline db SH11
- Rotor mount: Center Lock
- Weight: 674 g
-
Tyre
- Continental Grand Prix SL 28 mm
- Width: 28 mm
- Weight: 270 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm
Cockpit
-
Stem
- Canyon V15
- High-grade aluminium stem
- Clamp diameter: 31.8 mm
- Head tube diameter: 1 1/8”
- Weight: 148 g
-
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material: Aluminium
- Shape: Ergo
- Reach: 70 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
-
Seatpost
- Iridium Seatpost
- Seatpost diameter: 27,2 mm
- Material: Aluminium (AL)
- Weight: 287 g
-

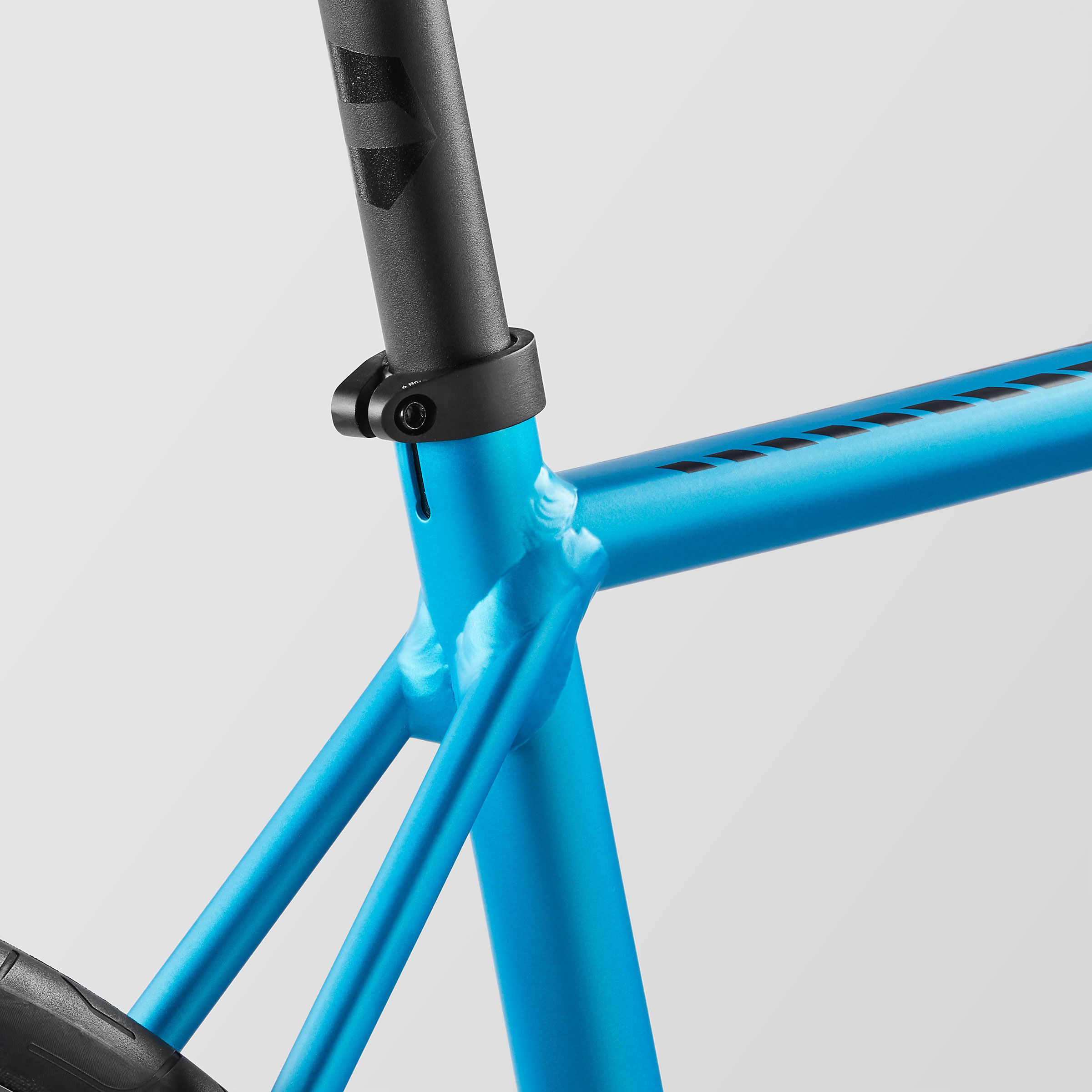

Seat Clamp
- Canyon Clamp SL
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
|
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
630 - 730 | 660 - 760 | 690 - 790 | 720 - 820 | 750 - 850 | 780 - 880 | 810 - 910 |
|
Seat Tube Length in mm
(b)
|
442 | 472 | 502 | 532 | 562 | 592 | 622 |
|
Top Tube Length in mm
(c)
|
520 | 535 | 546 | 556 | 570 | 595 | 610 |
|
Head Tube Length in mm
(d)
|
107 | 124 | 148 | 167 | 193 | 215 | 234 |
|
Head Tube Angle
(e)
|
69,2° | 71° | 72° | 73° | 73° | 73,25° | 73,25° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
|
Wheel Base in mm
(h)
|
990 | 990 | 993 | 994 | 1.008 | 1.030 | 1.045 |
|
Stack in mm
(i)
|
518 | 541 | 565 | 587 | 612 | 634 | 652 |
|
Reach in mm
(j)
|
366 | 375 | 379 | 383 | 389 | 407 | 417 |
|
Stand-over Height in mm
(k)
|
718 | 744 | 774 | 800 | 827 | 852 | 878 |
|
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 73 | 73 | 73 | 73 | 73 |
|
Stack+ in mm
|
602 | 622 | 648 | 670 | 697 | 719 | 739 |
|
Reach+ in mm
|
424 | 436 | 450 | 465 | 481 | 500 | 519 |
|
Spacer in mm
|
25,0 | 25,0 | 25,0 | 25,0 | 25,0 | 25,0 | 25,0 |
|---|---|---|---|---|---|---|---|
|
Stem Length in mm
|
80 | 80 | 90 | 100 | 110 | 110 | 120 |
|
Handlebar Width in mm
|
380 | 400 | 420 | 420 | 420 | 440 | 440 |
|
Crank Length in mm
|
170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
50/34 | 50/34 | 50/34 | 50/34 | 50/34 | 50/34 | 50/34 |
|
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
|
Seat Post Length in mm
|
330 | 330 | 330 | 330 | 330 | 330 | 330 |
|
Maximum Seat Post Insertion Depth in mm
|
190 | 190 | 190 | 190 | 190 | 190 | 190 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 | 90 | 90 | 90 |
|
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Endurace 6 DISC support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
