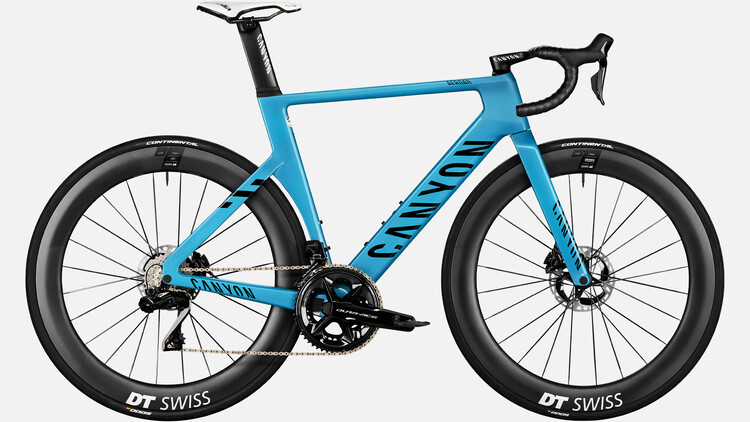

Aeroad CFR Disc MvdP
-
Weight:
7.24 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CFR)
-
-
Members only product. Log in here
Highlights Aeroad CFR Disc MvdP

‘Let the legs do the talking’

Head tube MVDP logo

Seat tube seal bearing
Frame
-
Frame
- Canyon Aeroad CFR Disc MVDP LTD
- Canyon Factory Racing aero carbon frame, featuring ultra-rare Toray M40X carbon fibres and exclusive MVDP artwork. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard.
- Canyon Factory Racing R065 aero carbon frame, with special MVDP artwork and ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard.
-
Fork
- Canyon FK0060 CF Disc MVDP LTD
- Aero design shaped using advanced CFD technology. With special MVDP-inspired artwork. Disc flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Material: Carbon (CF)
- Weight: 330 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-

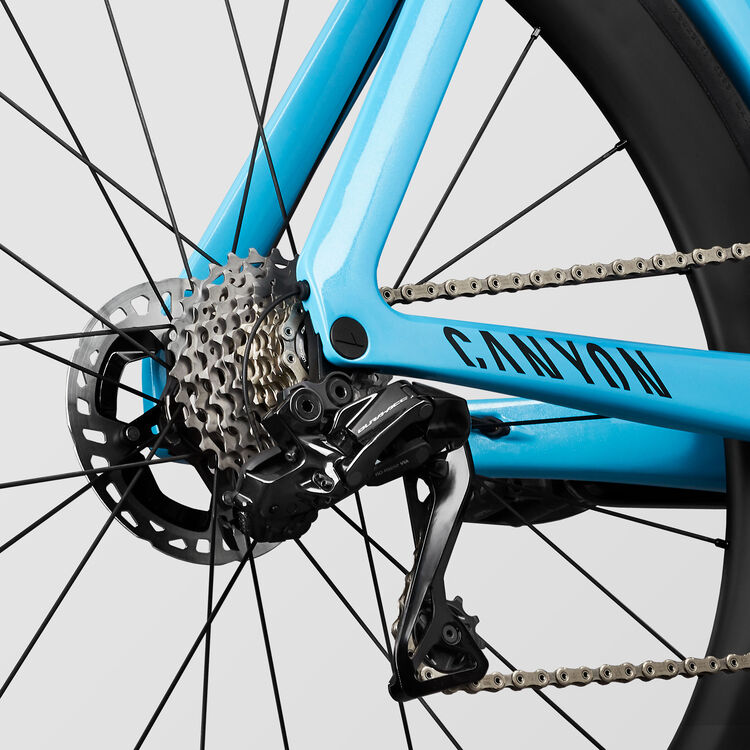

Rear Derailleur
- Shimano Dura-Ace Di2 RD-R9250, 12-speed
- Cage length: medium
- Weight: 256 g
-
Front Derailleur
- Shimano Dura-Ace Di2 FD-R9250
- Weight: 96 g
-
Cassette
- Shimano Dura-Ace CS-R9200
- Number of sprockets: 12
- Range: 11-30
-
Crank
- Shimano Dura-Ace Di2 Powermeter 172.5mm
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB92
- Bottom bracket standard: PF 86,5
- Weight: 55 g
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9270, 12-speed
- Number of pistons: 2
- Weight: 332 g
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9270, 12-speed
- Number of pistons: 2
- Weight: 330 g
-
Brake Rotor
- Shimano XTR RT-MT900
- Size: 160 mm
- Weight: 106 g
Wheels
-
Front Wheel
- DT Swiss ARC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Rim material: Carbon
- Weight: 776 g
-
Front Wheel
- DT Swiss ARC 1100 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Rim material: Carbon
- Weight: 900 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-

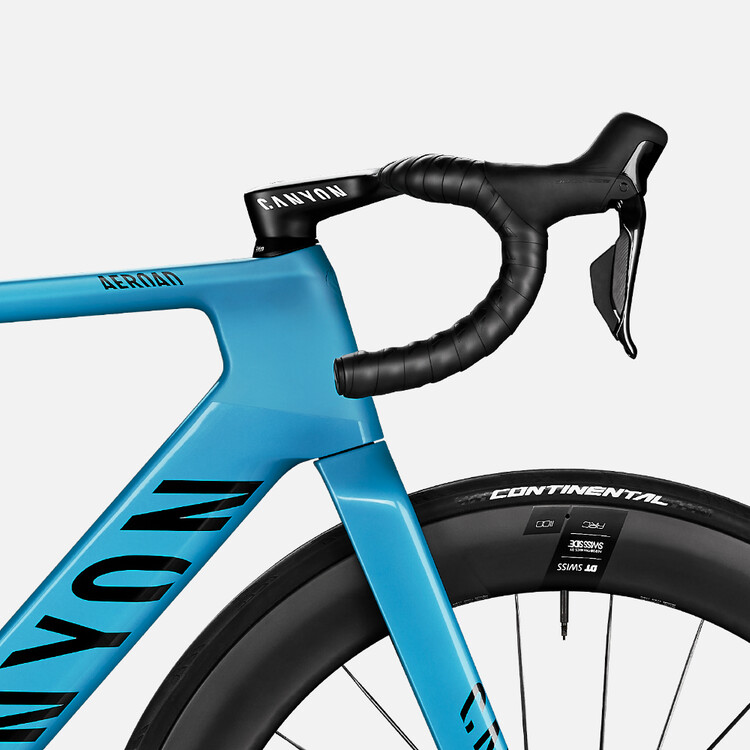

Cockpit
- Canyon CP0018 Aerocockpit
- One piece aero carbon cockpit with easy width adjustment, no-cut height adjustment, full cable integration, and reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 282 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Flite Boost Kit Carbonio Superflow MVDP
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 218 g
-
Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 10 g
-
Seat Clamp
- Canyon SP0046 Clampset Oval
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
520 | 533 | 549 | 559 | 572 | 598 | 613 |
Head Tube Length in mm
(d)
|
89 | 106 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
70,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
972 | 977 | 984 | 989 | 1.002 | 1.025 | 1.038 |
Stack in mm
(i)
|
498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
733 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
573 | 596 | 613 | 635 | 656 | 681 | 701 |
Reach+ in mm
|
429 | 446 | 459 | 473 | 490 | 509 | 529 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Aeroad CFR Disc MvdP support
Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
