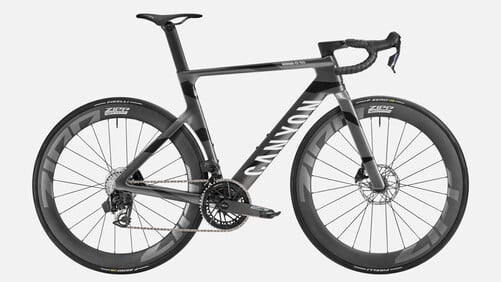

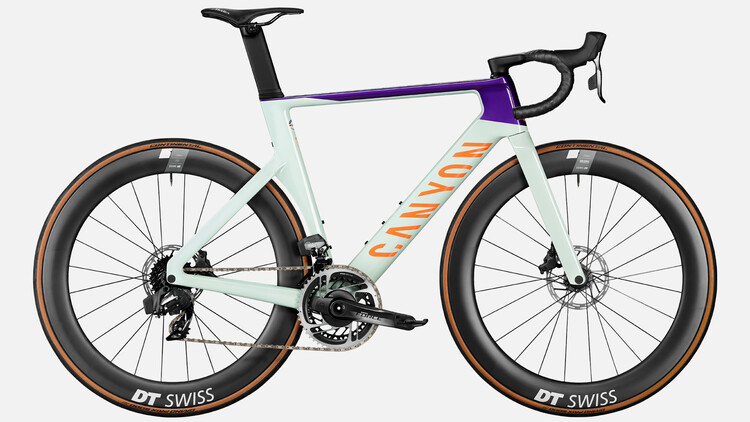

Aeroad CF SLX 8 Disc LTD
-
Weight:
7.94 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
-
-
Members only product. Log in here
Highlights Aeroad CF SLX 8 Disc LTD

Advanced aerodynamics

Balanced geometry

A pro-level cockpit
Frame
-
Frame
- Canyon Aeroad CF SLX Disc
- Axle dimension: 12x142 mm
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 1,080 g
-
Fork
- Canyon FK0060 CF Disc
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Material: Carbon (CF)
- Weight: 330 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Force eTap AXS
- Weight: 301 g
-
Front Derailleur
- SRAM Force eTap AXS
- Weight: 162 g
-
Cassette
- SRAM Force XG-1270, 12-speed, 10-28T
- Number of sprockets: 12
-
Crank
- SRAM Force D1 AXS Powermeter
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM FORCE D1 12-speed
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM Force eTap AXS, 12-speed
- Weight: 472 g
-
Shift-/ Brake Lever
- SRAM Force eTap AXS, 12-speed
- Weight: 489 g
-
Brake Rotor
- SRAM Paceline
- Size: 160 mm
- Weight: 159 g
Wheels
-
Front Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 800 g
-
Rear Wheel
- DT Swiss ARC 1400 Dicut
- Rim height: 62 mm
- Weight: 927 g
-
Tyre
- Continental Grand Prix 5000 25mm
- Width: 25 mm
- Weight: 245 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 245 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

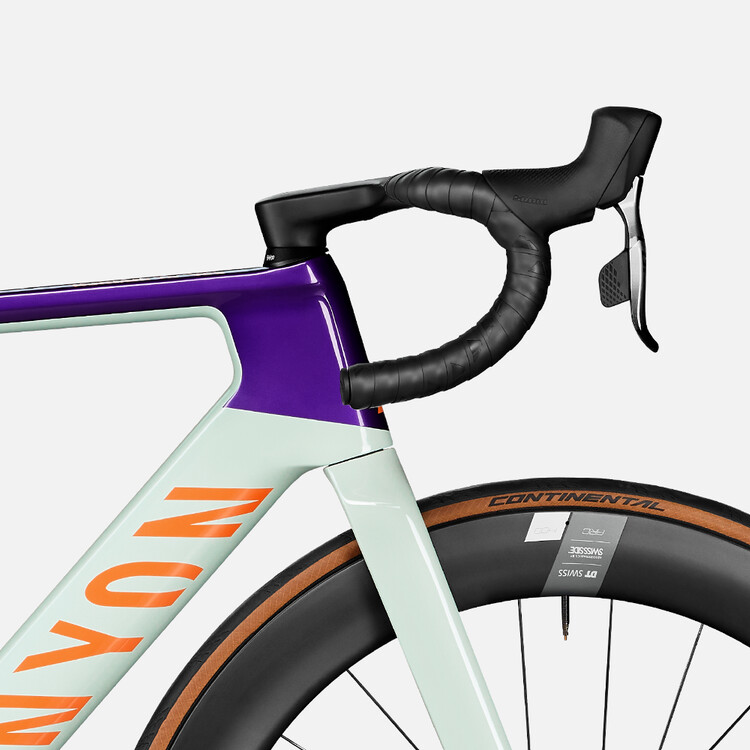

Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 181 g
-

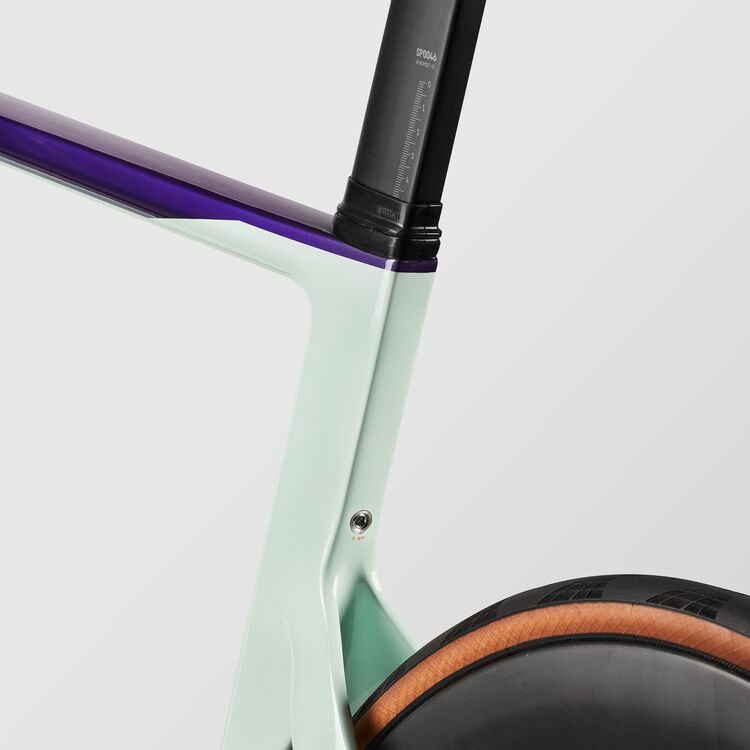

Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Clamp diameter: 27,2 mm
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Smallbox
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
520 | 533 | 549 | 559 | 572 | 598 | 613 |
Head Tube Length in mm
(d)
|
86 | 109 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
70,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
971 | 976 | 983 | 988 | 1.001 | 1.024 | 1.037 |
Stack in mm
(i)
|
498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
733 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
582 | 604 | 619 | 640 | 656 | 686 | 701 |
Reach+ in mm
|
520 | 538 | 551 | 562 | 490 | 598 | 529 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
50/37 | 50/37 | 50/37 | 50/37 | 50/37 | 50/37 | 50/37 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Aeroad CF SLX 8 Disc LTD support
Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
