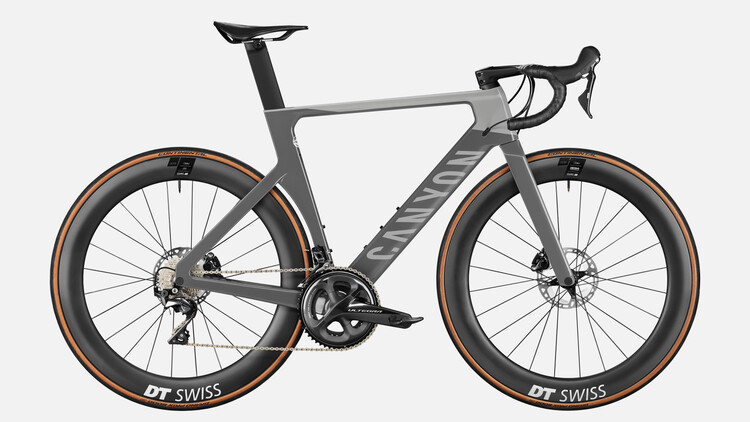

Aeroad CF SL 8
-
- Colour: Alpecin-Deceuninck Replica
- Colour: Morello Red
-
Members only product. Log in here
Highlights Aeroad CF SL 8

Aero for everyone

Balanced geometry

A watt-saving aero cockpit

A light, stiff, aero fork

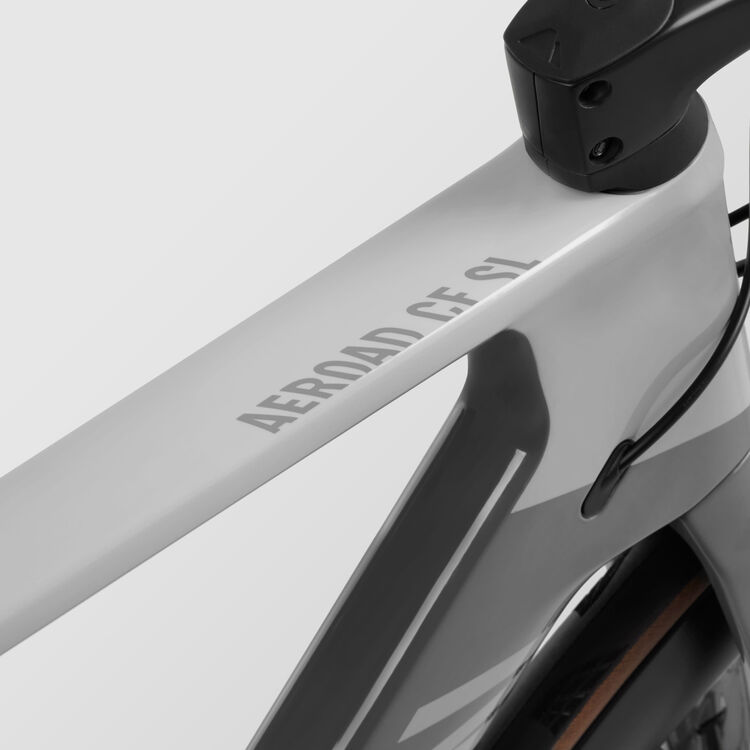

Frame
-
Frame
- Canyon Aeroad CF SL Disc
- Aero frame with the tube forms and geometry as the flagship Aeroad CFR. Shaped by extensive supercomputer analysis, validated in the wind tunnel.
- Axle dimension: 12x142 mm
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 1,009 g
-

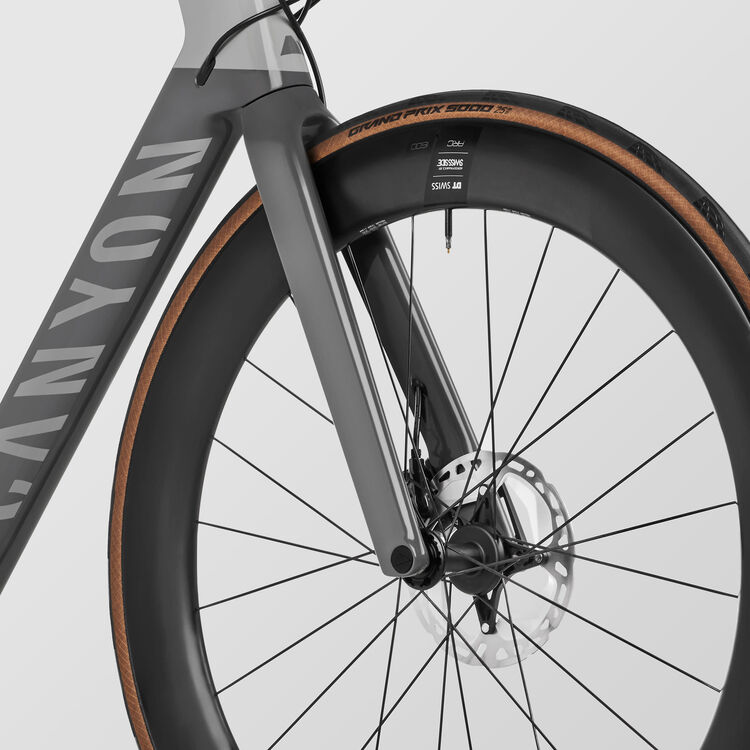

Fork
- Fork for R082 Aeroad 700c
- Aerodynamic fork. Shaped and tested by our partner Swiss Side with use of extensive computational fluid dynamics analysis.
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 750 g
Drivetrain
-
Rear Derailleur
- Shimano Ultegra R8000 SS
- Cage length: short
- Weight: 210 g
-
Front Derailleur
- Shimano Ultegra R8000
- Weight: 90 g
-
Cassette
- Shimano Ultegra R8000 11-30 11s
- Number of sprockets: 11
- Range: 11-30
-
Crank
- Shimano Ultegra R8000
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano CN-HG701 11s
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Ultegra R8020 2s
- Weight: 218 g
-
Shift-/ Brake Lever
- Shimano Ultegra R8020 11s
- Weight: 220 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- DT Swiss ARC 1600
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 864 g
-
Rear Wheel
- DT Swiss ARC 1600 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 979 g
-
Tyre
- Continental Grand Prix 5000 25mm
- Width: 25 mm
- Weight: 245 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 245 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

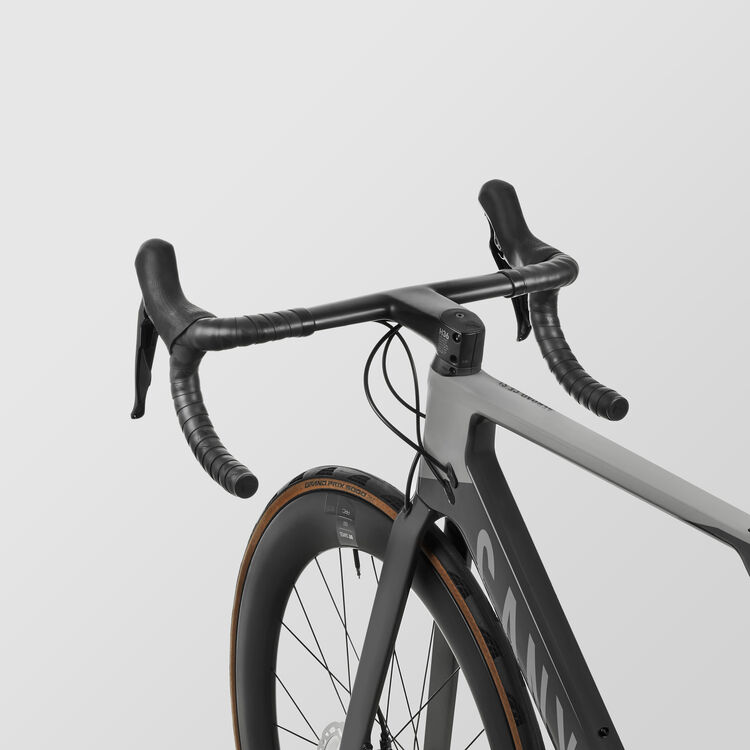

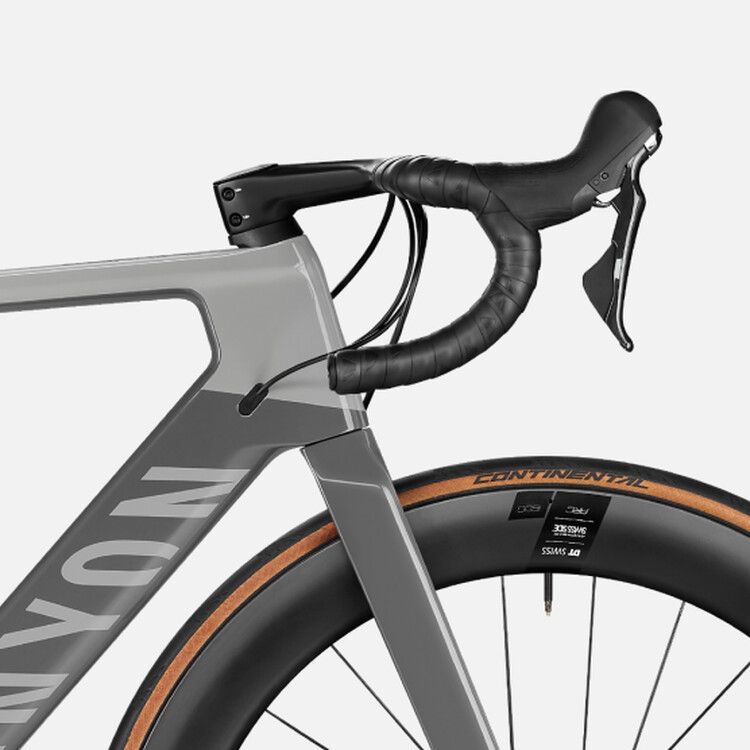

Cockpit
-
Cockpit
- Canyon H36 Aerocockpit
- A one-piece cockpit with top-end aerodynamics, semi-integrated cable routing, and premium ergonomics for comfort and precise handling.
- Material: Carbon (CF)
- Weight: 365 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
-
Seatpost
- Canyon SP0079 Aero Seatpost
- Super-stiff, superlight carbon seatpost with unique blade form. Sculpted in the wind tunnel using advanced CFD technology.
- Material: Carbon (CF)
- Weight: 980 g
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
-
Seat Clamp
- Canyon GP0391-02 Seat Clamp
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Quick start guide V07 Aeroad
Body Height in cm
|
≤ 160 | 160 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
581 - 661 | 611 - 691 | 641 - 721 | 671 - 751 | 701 - 801 | 731 - 831 | 761 - 861 | 791 - 891 |
Seat Tube Length in mm
(b)
|
413 | 443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
501 | 520 | 533 | 549 | 559 | 572 | 598 | 613 |
Head Tube Length in mm
(d)
|
103 | 121 | 109 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
71° | 71,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
951 | 967 | 977 | 984 | 989 | 1.002 | 1.025 | 1.038 |
Stack in mm
(i)
|
483 | 498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
358 | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
708 | 729 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
57 | 57 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
574 | 589 | 613 | 630 | 653 | 675 | 700 | 719 |
Reach+ in mm
|
415 | 430 | 446 | 459 | 473 | 490 | 509 | 529 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
90-390 | 90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-430 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
280 | 280 | 280 | 280 | 300 | 300 | 300 | 300 |
Maximum Seat Post Insertion Depth in mm
|
160 | 160 | 160 | 160 | 180 | 180 | 180 | 180 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Aeroad CF SL 8 support
Other riders also bought
- Colour: Vermillion Orange
- Colour: Lilac
- Colour: Blue
- Colour: Marine
- Colour: Arabic Spice
- Colour: Arabic Spice
- Colour: Marine
- Colour: Astra Green
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
