Spectral CF 7
-
全新
¥27,000
- Winner of Pinkbike’s Trail Bike of the Year award
- Strong yet light, Spectral’s carbon frame delivers
- Total control on tough trails. Full FOX suspension
- Shimano SLX kit and powerful 4-piston brakes
- 29er and mullet compatible
- 前叉行程: 160 毫米
-
重量:
14.88 千克
重量基于中等尺寸车架。
颜色:
Exhaust Black
-
颜色: Exhaust Black
-
颜色: Thermite Red
-
颜色: Big Bamboo
-
会员专享产品. 在此处登录
选择车架尺寸
配送:
选择 车架尺寸
会员专享产品.
在此处登录
-
自行车在您收到货时已完成 95% 的组装。我们将为您提供工具。以及简单的说明。无需任何技术技能即可完成。
-
我们的质量目标是确保您对自行车 100% 满意。
了解更多
配送:
选择 车架尺寸
亮点 Spectral CF 7
Flip Chip
Maximum stability and control in corners or more ground clearance for technical climbing? What if you could have both? Using the Flip Chip on the rear suspension linkage, you can change the bike’s geometry to suit your riding style within a matter of seconds. Head tube and seat tube angle adjustment: 0.5 degrees. Bottom bracket height adjustment: 8 mm.
Silent Protection
Straight from pro racing, right on to your bike – we designed the Spectral’s chainstay guards using feedback from our EWS mechanics. Their special structure dampens chain slap noise for a quiet, slick ride feel.

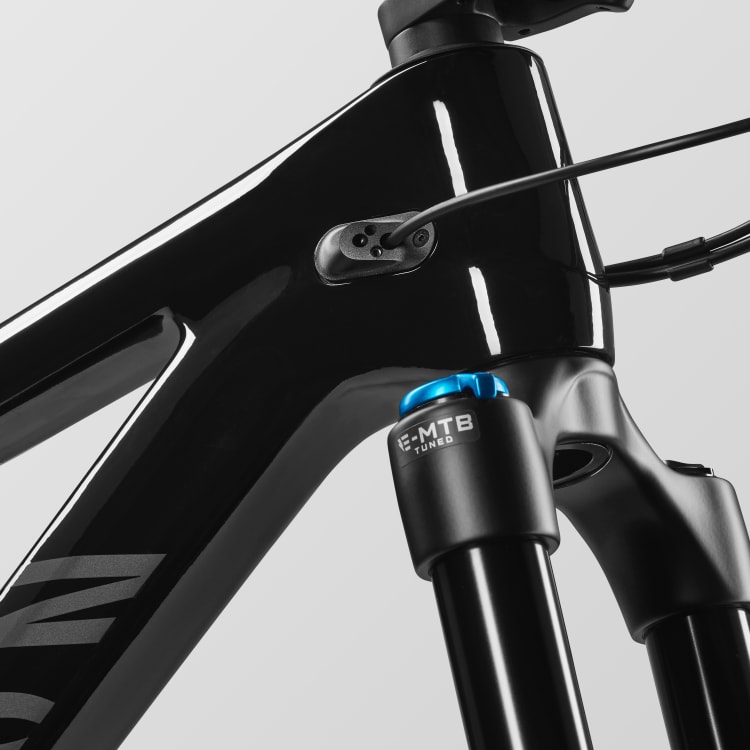

Clever Guided Cable Routing
We’ve integrated a plastic cable channel inside the frame to eliminate annoying cable rattle and to make tune-ups and cable swaps fast and painless. Just thread brake and shifter cables into the chainstay, push them through, and they automatically come out the front of the front triangle.
Trail-Proven Durability
With its Category 4 rating, this bike is designed to withstand hard riding on harsh, obstacle-scattered terrain with steep gradients, jumps and high speeds. We also made sure that your bike continues to deliver time-and-time again and is easy to maintain by getting the details like double-sealed bearings and replaceable threaded inserts right.
加载内容
车架
-
车架
- Canyon Spectral CF 29
- 全碳山地车车架。采用加长且平缓的激进几何结构,冲破崎险,尽情驰骋。Flip Chip 翻转片系统支持轻松调节几何形状。第 4 类。
- 车轴尺寸: 12x148 毫米
- 材料: 碳纤维 (CF)
- 重量: 2,730 g
-
后避震器
- FOX Float X Performance
- 重量: 647 g
-
避震前叉
- FOX 36 Rhythm Grip
- 车轴尺寸: 15x110 毫米
- 内管直径: 36 mm
- 行程: 160 mm
- 前叉立管直径: 1.125 英寸 - 1.5 英寸
- 重量: 2,290 g
-
座管夹
- Canyon SC0001
传动系统
-
后变速器
- Shimano Deore XT M8100
- 导臂长度: 长
- 重量: 282 g
-
护链罩
- Canyon EP1266-01 ISCG05 Plate
-
护链罩
- Canyon GP0293-02
-
变速拨杆
- Shimano Deore SLX M7100
- 重量: 143 g
-
飞轮
- Shimano Deore SLX CS-M7100
- 飞轮数量: 12
- 范围: 10-51
-
曲柄
- Shimano DEORE XT M8120
- 牙盘数量: 1
-
五通
- Token TK878EX
- 中轴标准: BSA 68/73
- 重量: 98 g
-
链条
- Shimano Deore M6100
刹车
-
碟刹
- Shimano Deore SLX M7120
-
碟刹
- Shimano Deore SLX M7120
-
刹车盘
- Shimano RT86
- 尺寸: 203 mm
- 重量: 182 g
车轮
-
前轮
- DT Swiss M1900
- 车轴尺寸: 15x110 毫米
- 内部宽度: 30 mm
- 轮圈材料: 铝
- 重量: 960 g
-
后轮
- DT Swiss M1900
- 车轴尺寸: 12x148 毫米
- 内部宽度: 30 mm
- 轮圈材料: 铝
- 重量: 1,120 g
-
轮胎
- Maxxis Minion DHR II Exo
- Width: 2,4"
- 重量: 1,035 g
-
轮胎
- Maxxis Minion DHR II Exo+
- 宽度:2.4 英寸
- 重量: 1,112 g
-
通轴
- Canyon Quixle Through Axle QR 148x12
- 车轴尺寸: 12x148 毫米
车把
-
把立
- Canyon G5
- 现代设计,极致耐用:Canyon G5 组件由我们的职业人士在全世界艰难路段上开发。
- 前叉立管直径: 1.125 英寸
- 管夹直径: 31,8 mm
- 材料: 铝 (AL)
-
把横
- Canyon G5
- Material: Carbon
- Rise: 30 mm
-
把手
- Canyon G5
车座
-
车座
- Ergon SM10
- 性别: 男性
- 重量: 320 g
-
座管
- Canyon G5
- 管夹直径: 30,9 mm
- 材料: 铝 (AL)
- 重量: 534 g
车灯
-
车灯
- Reflector Set
配件
-
脚踏板
- 不含
-
手册和配件
- Canyon Organza Bag
-
手册和配件
- Canyon Assembly Paste
-
手册和配件
- Canyon Torque Wrench
-
手册和配件
- Canyon Quick Start Guide
-
手册和配件
- Canyon Shock Pump 300 Psi
-
手册和配件
- Smallbox
加载内容
加载内容
|
车身高度英寸厘米
|
≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
|---|---|---|---|---|
|
车座高度英寸毫米
(a)
|
635 - 770 | 690 - 815 | 750 - 875 | 780 - 905 |
|
座管长度英寸毫米
(b)
|
395 | 430 | 460 | 490 |
|
上管长度英寸毫米
(c)
|
583 | 610 | 637 | 664 |
|
头管长度英寸毫米
(d)
|
95 | 105 | 115 | 125 |
|
头管角度
(e)
|
64° | 64° | 64° | 64° |
|
座管角度
(f)
|
76° | 76° | 76° | 76° |
|
后下叉长度英寸毫米
(g)
|
437 | 437 | 437 | 437 |
|
轴距英寸毫米
(h)
|
1.197 | 1.226 | 1.255 | 1.285 |
|
堆高英寸毫米
(i)
|
615 | 624 | 633 | 642 |
|
前伸量英寸毫米
(j)
|
431 | 456 | 481 | 506 |
|
跨高英寸毫米
(k)
|
753 | 759 | 764 | 776 |
|
五通偏移量英寸毫米
(l)
|
33 | 33 | 33 | 33 |
|
垫片英寸毫米
|
20,0 | 20,0 | 20,0 | 20,0 |
|---|---|---|---|---|
|
把立长度英寸毫米
|
40 | 40 | 40 | 40 |
|
把横宽度英寸毫米
|
780 | 780 | 780 | 780 |
|
曲柄长度英寸毫米
|
170,0 | 170,0 | 170,0 | 170,0 |
|
牙盘尺寸
|
32 | 32 | 32 | 32 |
|
座管直径英寸毫米
|
30,9 | 30,9 | 30,9 | 30,9 |
|
车座升降管行程英寸毫米
|
150 | 170 | 200 | 200 |
|
座管长度英寸毫米
|
417 | 457 | 517 | 517 |
|
最大座管插入深度英寸毫米
|
225 | 245 | 275 | 275 |
|
最小座管插入深度英寸毫米
|
90 | 120 | 150 | 150 |
|
车轮尺寸
|
29" | 29" | 29" | 29" |
|
刹车盘尺寸英寸毫米
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
|
前叉行程英寸毫米
|
160 | 160 | 160 | 160 |
|
后避震行程英寸毫米
|
150 | 150 | 150 | 150 |
|
贴合调节长度
|
230X60 | 230X60 | 230X60 | 230X60 |
下载 PDF
Spectral CF 7 支持服务
其他骑手也购买了
¥439
¥259
自行车分类
此类别还满足 1-3 类的要求。此外,也适用于条件非常恶劣、障碍物密集、坡度陡峭的地形,可自如应对较快的速度。经验丰富的骑手在骑行这些自行车时完全可以有规律、适度地跳跃。应避免在自行车公园和“北岸”路段长时间频繁使用。由于压力较高,每次骑行后都应检查这些自行车是否损坏。具有中等行程的全避震自行车是此类别中的常见车型。
免责声明
如有技术修改,恕不另行通知。错漏除外。
