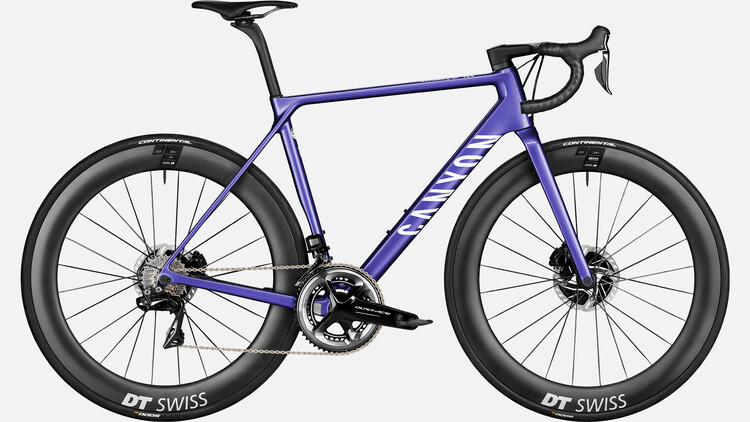

Ultimate CF SLX 9 Di2 LTD RSVP
A top-end Ultimate frame, coming from a Pro Sport-inspired portfolio. Refreshed by pro bike painting specialists. Combined with top-shelf aero parts, including premium DT Swiss ARC 1100 Dicut wheels. This is a truly world-class road racing package with a sensational look to match.
- 材料: 碳纤维 (CF)
-
重量:
7 千克
重量重量基于中等尺寸车架。
-
-
会员专享产品. 在此处登录
选择车架尺寸
售罄
会员专享产品.
在此处登录
售罄
亮点 Ultimate CF SLX 9 Di2 LTD RSVP

Frames from a pro-inspired portfolio

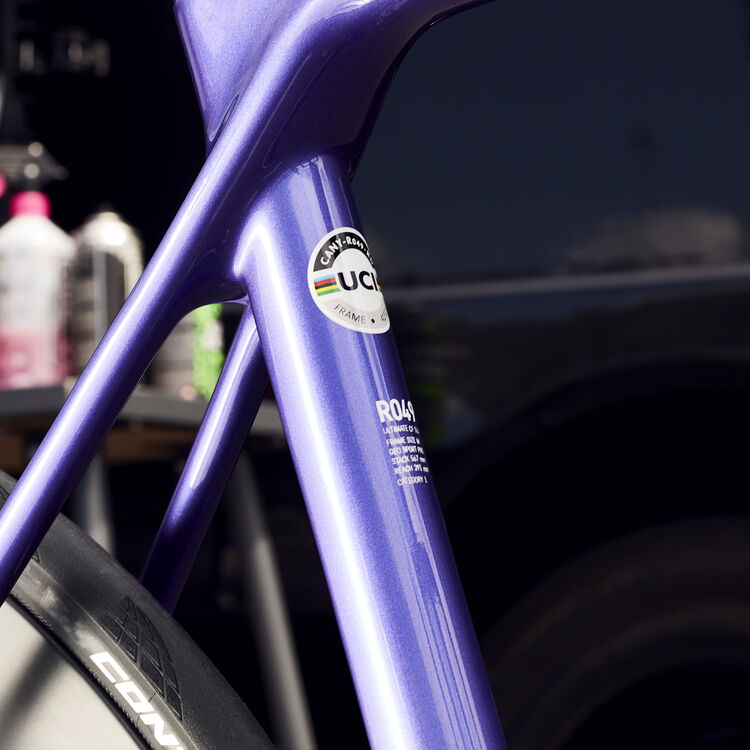

Ultimate RSVP bikes are built around previously reserved frames, some singled out for our pro riders. Never used, never ridden, mint condition – these frames are ready for the pro peloton.

Aerodynamically optimised

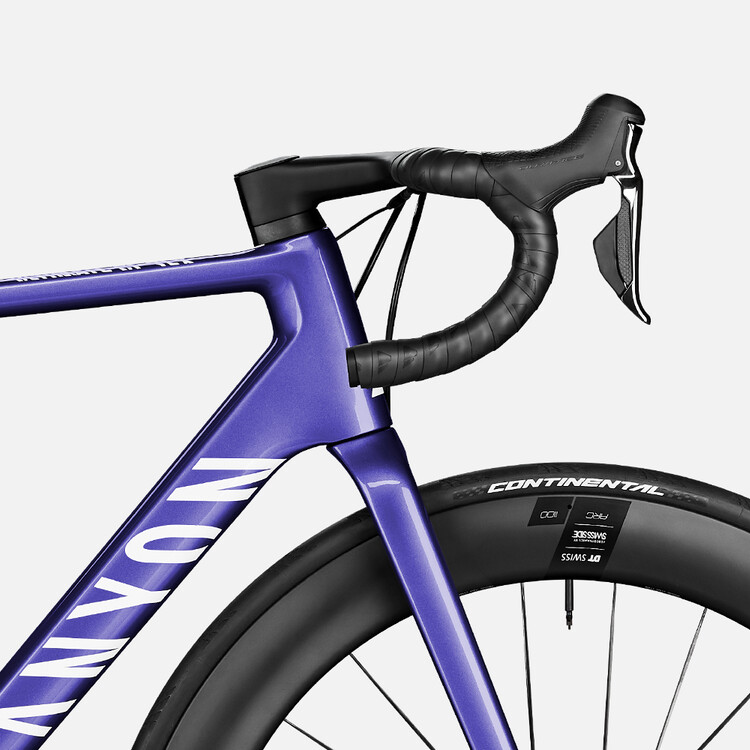

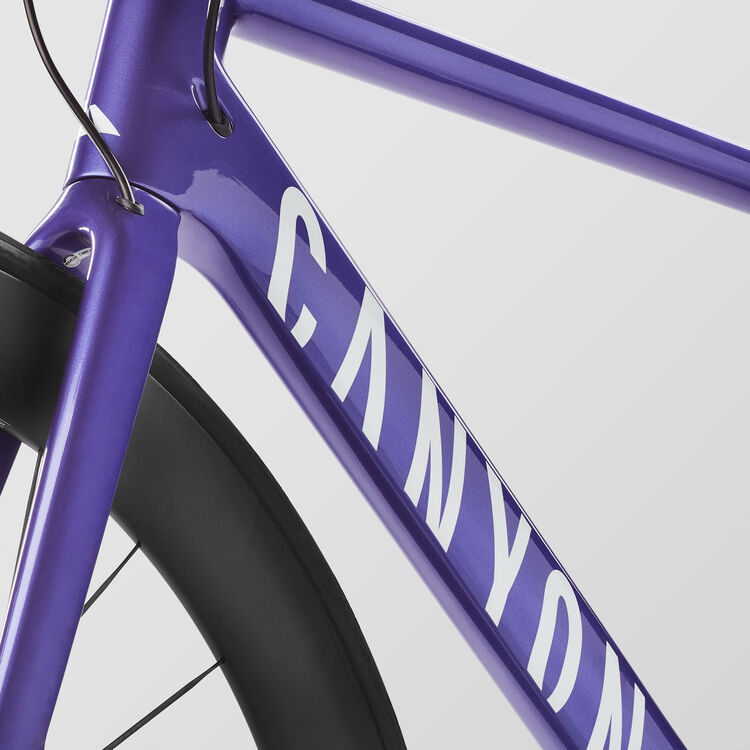

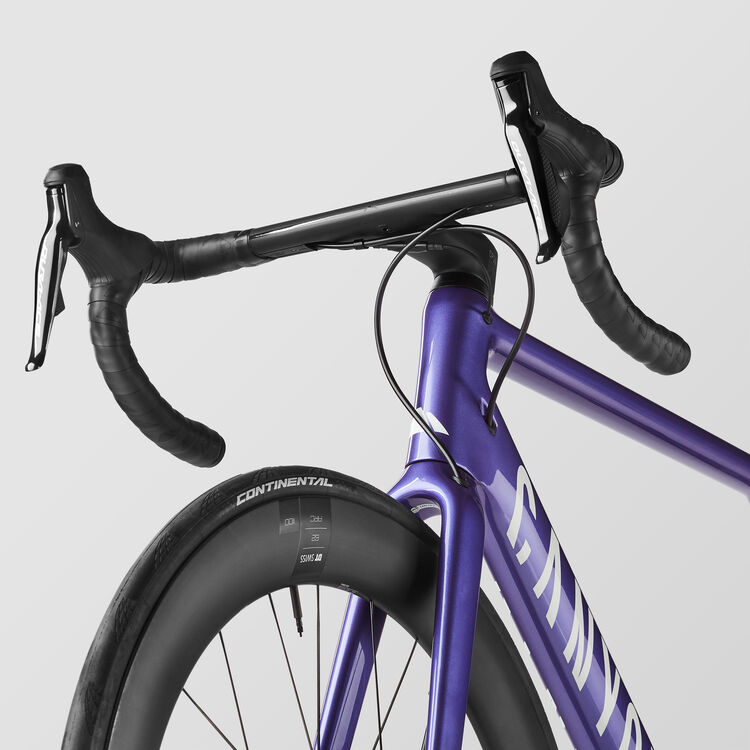

The Ultimate is designed to keep drag low, for optimal all-round road racing performance. The D-shaped down tube was sculpted with aero efficiency in mind. An hourglass head tube keeps the frame’s frontal area low. And lightweight, ergonomic carbon cockpits are aerodynamically optimised, cutting watts and creating a super-clean look.

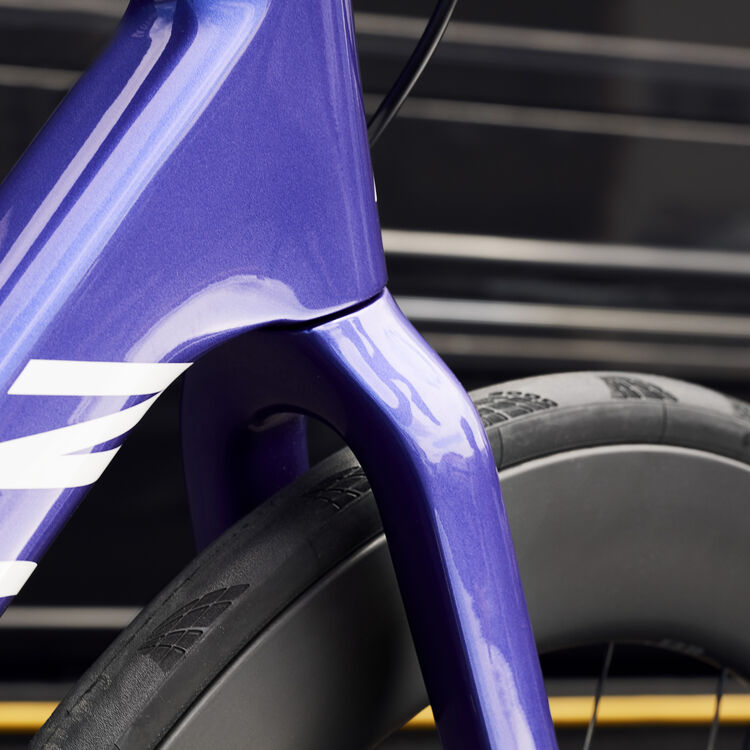

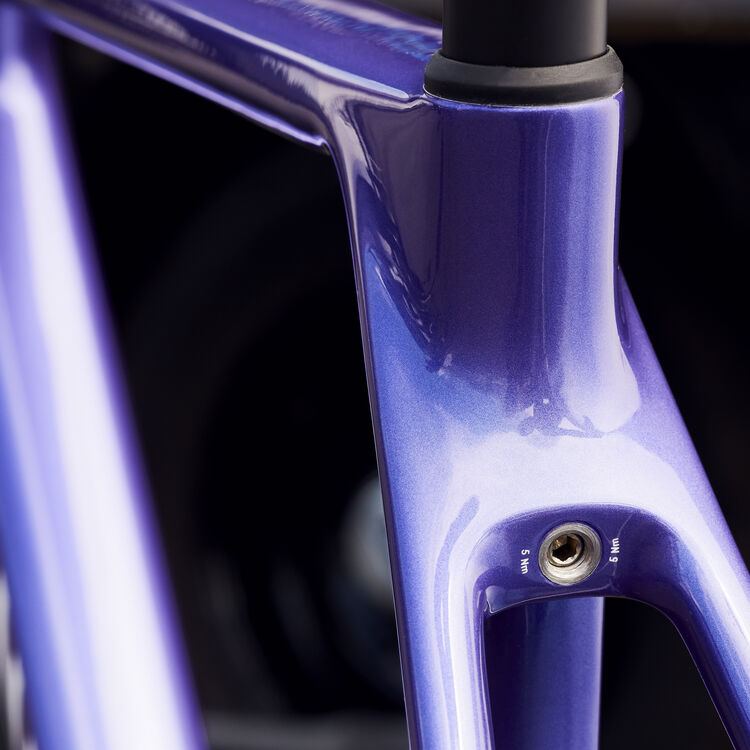

Gloss finish, applied in Germany

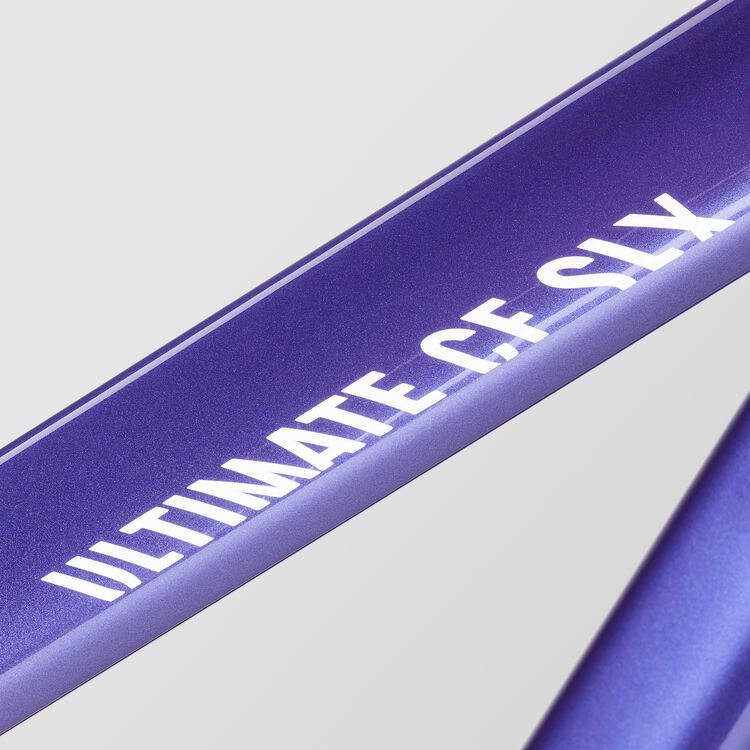

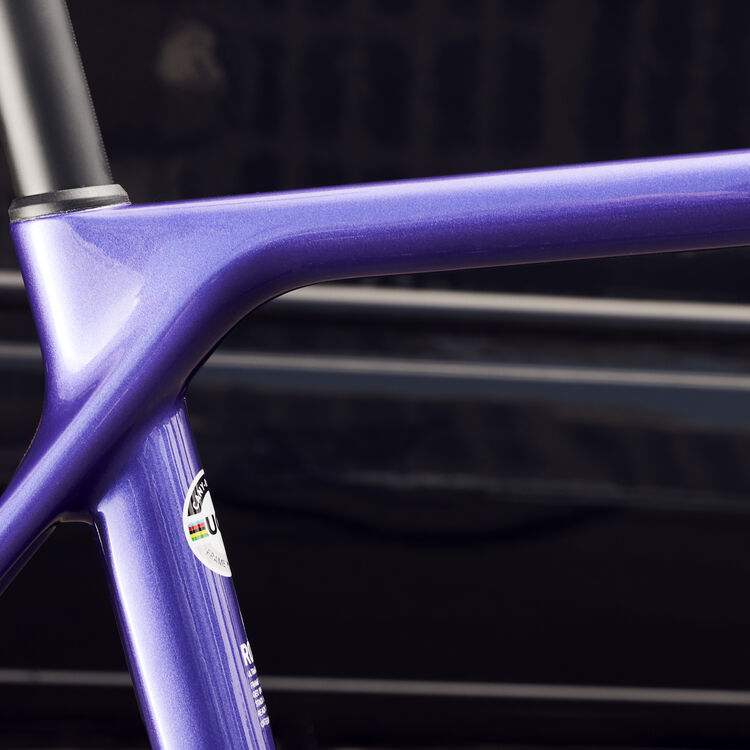

Ultimate RSVP bikes feature premium frame artwork newly applied by our expert partners right here in Germany. Working with local suppliers gave our designers more flexibility, letting them get directly hands-on when it came to colour selection. The result: special purple and grey gloss finishes that look simply incredible.
加载内容
车架
-
车架
- Canyon Ultimate CF SLX Disc LTD RSVP
- Pro-level road race bike frame proven at the highest levels of competition. With a special premium frame finish, applied by hand in Germany.
- Material: carbon
- Axle dimensions: 12 x 142 mm
- Brake mount: flat mount
- Weight: 859 g (with paint)
-
硬叉
- Canyon F38 CF Disc LTD RSVP
- 车轴尺寸: 12x100 毫米
- 前叉立管直径: 1.25 英寸
- 材料: 碳纤维 (CF)
- 重量: 1,201 g
传动系统
-
电池
- Shimano BT-DN110 Di2 Battery
-
后变速器
- Shimano Dura-Ace Di2 R9150, 11-speed
- 导臂长度: 短
- 重量: 10 g
-
后变速器
- Shimano Dura-Ace Di2 R9150
- 重量: 114 g
-
飞轮
- Shimano Dura-Ace R9100, 11-speed, 11-28
- 飞轮数量: 11
-
曲柄
- Shimano Dura-Ace R9100 PM
- 牙盘数量: 2
-
五通
- Shimano Pressfit BB92
- 中轴标准: PF 86,5
- 重量: 55 g
-
链条半成品
- Shimano HG901 11-speed
- High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.
刹车
-
制动
- Shimano Flat Mount Adapter +20mm
-
变速拨杆/刹车拨杆
- Shimano Dura Ace Di2 R9170, 11-speed
- 重量: 240 g
-
变速拨杆/刹车拨杆
- Shimano Dura Ace Di2 R9170, 11-speed
- 重量: 977 g
-
刹车盘
- Shimano RT900
- 尺寸: 160 mm
- 重量: 10 g
车轮
-
前轮
- DT Swiss ARC 1100 Dicut
- 车轴尺寸: 12x100 毫米
- 轮圈高度: 62 mm
- 轮圈材料: 碳纤维
- 重量: 776 g
-
前轮
- DT Swiss ARC 1100 Dicut
- 车轴尺寸: 12x142 毫米
- 轮圈高度: 62 mm
- 轮圈材料: 碳纤维
- 重量: 900 g
-
轮胎
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- 重量: 220 g
-
轮胎
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- 重量: 260 g
-
通轴
- Canyon GP0197-01
- 车轴尺寸: 12x100 毫米
-
通轴
- Canyon GP0235-01
- 车轴尺寸: 12x142 毫米
车把
-
车把
- Canyon CP0030 Aerocockpit
- 一体式碳纤维车把,以利落的整体造型集成把横和把立。
- 材质:碳纤维
- 形状:Ergo
- 前伸量:74 毫米
- 下沉量:130 毫米
-
把带
- Canyon Ergospeed Gel
- 防滑耐用的把带手感优越舒适。
- 颜色: 黑色
车座
-
车座
- Selle Italia SLR Boost Superflow Kit Carbonio
- 宽度:130 毫米
- 性别: 中性
- 最大骑手质量: 100 kg
- 重量: 128 g
-
座管
- Canyon S13 VCLS CF
- 材质:碳纤维
- 座管后移量:15 - 35 毫米
- 技术:VCLS
- 重量:220 克
配件
-
脚踏板
- 不含
-
手册和配件
- Canyon Organza Bag
-
手册和配件
- Canyon Assembly Paste
-
手册和配件
- Canyon Note about Cockpit Clamp H31
-
手册和配件
- Canyon Starter Box
-
手册和配件
- Canyon Torque Wrench
-
手册和配件
- Endurace Quick Start Guide
加载内容
加载内容
车身高度英寸厘米
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
车座高度英寸毫米
(a)
|
620 - 720 | 653 - 753 | 680 - 780 | 708 - 808 | 740 - 840 | 770 - 870 | 800 - 900 |
座管长度英寸毫米
(b)
|
434 | 467 | 494 | 522 | 554 | 584 | 614 |
上管长度英寸毫米
(c)
|
513 | 529 | 543 | 556 | 571 | 596 | 612 |
头管长度英寸毫米
(d)
|
89 | 107 | 130 | 148 | 174 | 195 | 213 |
头管角度
(e)
|
69,6° | 71° | 72,3° | 73,3° | 73,3° | 73,5° | 73,8° |
座管角度
(f)
|
73,85° | 73,83° | 73,82° | 73,8° | 73,79° | 73,78° | 73,77° |
后下叉长度英寸毫米
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
轴距英寸毫米
(h)
|
983 | 988 | 993 | 996 | 1.011 | 1.034 | 1.046 |
堆高英寸毫米
(i)
|
500 | 522 | 546 | 567 | 592 | 613 | 631 |
前伸量英寸毫米
(j)
|
368 | 378 | 385 | 391 | 399 | 418 | 428 |
跨高英寸毫米
(k)
|
720 | 748 | 775 | 801 | 828 | 851 | 874 |
五通偏移量英寸毫米
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
堆高+英寸毫米
|
567 | 587 | 612 | 633 | 660 | 681 | 700 |
前伸量+英寸毫米
|
433 | 444 | 462 | 479 | 497 | 516 | 536 |
垫片英寸毫米
|
18 | 18 | 18 | 18 | 18 | 18 | 18 |
---|---|---|---|---|---|---|---|
车把尺寸英寸毫米
|
80-370 | 90-390 | 90-390 | 100-410 | 110-410 | 110-430 | 120-430 |
曲柄长度英寸毫米
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
牙盘尺寸
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
座管直径英寸毫米
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
座管长度英寸毫米
|
345 | 345 | 345 | 345 | 345 | 345 | 345 |
最大座管插入深度英寸毫米
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
最小座管插入深度英寸毫米
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
车轮尺寸
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
刹车盘尺寸英寸毫米
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
下载 PDF
加载内容
Ultimate CF SLX 9 Di2 LTD RSVP 支持服务
加载内容

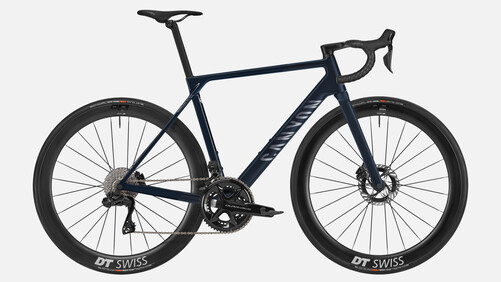

或者,您可以查看上一代车型。
