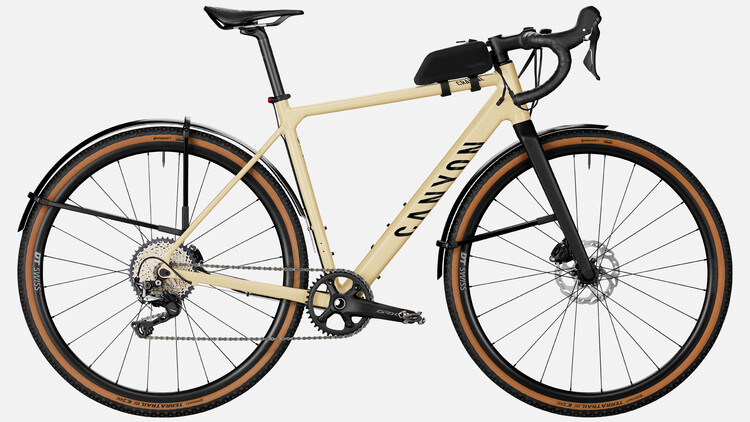

Grail 7 AW
If you could only have one bike in your garage, this would be it. Winter. Summer. Asphalt. Gravel. Rain. Sun. From one-day rides to big weekend trips. With powerful lights, mudguards, and all-terrain tyres, the Grail is the ideal all-season gravel bike for year-round riding.
-
-
会员专享产品. 在此处登录
选择车架尺寸
售罄
可能的轮胎变更:这款自行车配备 Continental Terra Trail 或 Schwalbe G-One R 轮胎,具体视供应情况而定。
会员专享产品.
在此处登录
售罄
亮点 Grail 7 AW

Stay clean
To keep you and your bike clean even in poor weather conditions, we fit a custom set of mudguards out of the factory. The bright, premium Lupine lights let you see clear even in the darkest conditions. In short, this bike is equipped to get the job done on any terrain, in any weather.

Practical top tube storage included
The Grail 7 AW comes fitted with a sleek, streamlined Canyon LOAD Top Tube Bag just behind the handlebar. Waterproof, it’s the ideal place to store your phone, spares and tools. There's also a practical cable outlet that's even wide enough to fit wider Lupine light connectors.

3 bottle mounts
Only on aluminium Grail bikes: a third bottle cage mount, on the underside of the down tube. Stay hydrated, even on long rides on hot days.
加载内容
车架
-
车架
- Canyon Grail AL Disc
- 坚固的铝合金砾石车车架采用 Gravel Pro 职业砾石车几何形状设计,充分兼顾稳定性、敏捷性和舒适度。
- 车轴尺寸: 12x142 毫米
- 材料: 铝 (AL)
- 重量: 1,355 g
-
硬叉
- Canyon FK0070 CF Disc
- 坚固的碳纤维前叉,集坚固度、刚度和轻盈性于一身。
- 车轴尺寸: 12x100 毫米
- 前叉立管直径: 1.25 英寸
- 材料: 碳纤维 (CF)
- 重量: 372 g
传动系统
-
后变速器
- Shimano GRX RX812 GS
- 导臂长度: 长
- 重量: 249 g
-
飞轮
- Shimano SLX M7000 11-42 11s
- 飞轮数量: 11
-
曲柄
- Shimano GRX RX600 40T
- 牙盘数量: 1
-
五通
- Token Ninja Lite BB4124
- 中轴标准: PF 86,5
- 重量: 85 g
-
链条
- Shimano CN-HG601 11s
- 链条经过 SIL-TEC 超低摩擦表面处理,实现精确变速并提高耐用性。
刹车
-
制动
- Shimano Flat Mount Adapter +20mm
-
变速拨杆/刹车拨杆
- Shimano GRX RX600 11s
- 重量: 541 g
-
变速拨杆/刹车拨杆
- Shimano GRX RX600
- 重量: 541 g
-
刹车盘
- Shimano RT70
- 尺寸: 160 mm
- 重量: 150 g
车轮
-
前轮
- DT Swiss Gravel LN
- 车轴尺寸: 12x100 毫米
- 轮圈高度: 25 mm
- 内部宽度: 24 mm
- 轮圈材料: 铝
- 重量: 946 g
-
后轮
- DT Swiss Gravel LN
- 车轴尺寸: 12x142 毫米
- 轮圈高度: 25 mm
- 内部宽度: 24 mm
- 轮圈材料: 铝
- 重量: 1,145 g
-
轮胎
- Schwalbe G-One Bite 40 mm
- Width: 40 mm
- 重量: 728 g
-
通轴
- Canyon Thru Axle
- 车轴尺寸: 12x100 毫米
-
通轴
- Canyon Thru Axle
- 车轴尺寸: 12x142 毫米
车把
-
把立
- Canyon V13
- 高品质铝合金把立,方形横截面。新的把横夹设计增加了高达 40% 的抗扭刚度。把横夹直径:31.8 毫米。头管直径:1.25 英寸。
- 前叉立管直径: 1.25 英寸
- 管夹直径: 31,8 mm
-
把横
- Canyon HB0063
- 坚固的铝合金把横搭配喇叭弯把,加强了越野控制力。
- 管夹直径: 31,8 mm
- 宽度: 440 mm
-
把带
- Canyon Ergospeed Gel
- 防滑耐用的把带手感优越舒适。
- 颜色: 黑色
车座
-
车座
- Selle Italia Model X
- 宽度:145 毫米
- 性别: 中性
- 最大骑手质量: 100 kg
- 重量: 310 g
-
座管
- Canyon SP0043 VCLS CF
- 材质:碳纤维
- 后飘:20 毫米
- 技术:VCLS
-
座管夹
- Canyon Clamp SL
车灯
-
车灯
- Lupine SL Nano AF + C14 Lightning Set
配件
-
脚踏板
- 不含
-
泥除
- Canyon CLite Fender
-
手册和配件
- Canyon Organza Bag
-
手册和配件
- Canyon Assembly Paste
-
手册和配件
- Canyon Starter Box
-
手册和配件
- Canyon Torque Wrench
-
手册和配件
- Endurace Quick Start Guide
加载内容
加载内容
车身高度英寸厘米
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
---|---|---|---|---|---|---|---|
车座高度英寸毫米
(a)
|
595 - 715 | 625 - 745 | 655 - 775 | 685 - 805 | 715 - 835 | 745 - 865 | 775 - 895 |
座管长度英寸毫米
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
上管长度英寸毫米
(c)
|
516 | 531 | 555 | 577 | 591 | 616 | 631 |
头管长度英寸毫米
(d)
|
117 | 133 | 124 | 143 | 169 | 190 | 209 |
头管角度
(e)
|
70° | 71° | 70,75° | 72,25° | 72,5° | 72,75° | 72,75° |
座管角度
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
后下叉长度英寸毫米
(g)
|
415 | 415 | 430 | 430 | 430 | 430 | 430 |
轴距英寸毫米
(h)
|
984 | 990 | 1.027 | 1.035 | 1.047 | 1.070 | 1.085 |
堆高英寸毫米
(i)
|
514 | 533 | 556 | 579 | 605 | 626 | 644 |
前伸量英寸毫米
(j)
|
364 | 373 | 390 | 405 | 412 | 431 | 440 |
跨高英寸毫米
(k)
|
725 | 751 | 781 | 808 | 834 | 859 | 881 |
五通偏移量英寸毫米
(l)
|
60 | 60 | 75 | 75 | 75 | 75 | 75 |
堆高+英寸毫米
|
603 | 624 | 647 | 669 | 696 | 717 | 737 |
前伸量+英寸毫米
|
410 | 430 | 447 | 464 | 481 | 500 | 519 |
垫片英寸毫米
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|
把立长度英寸毫米
|
70 | 80 | 80 | 80 | 90 | 90 | 100 |
把横宽度英寸毫米
|
400 | 400 | 420 | 440 | 440 | 460 | 460 |
曲柄长度英寸毫米
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
牙盘尺寸
|
40 | 40 | 40 | 40 | 40 | 40 | 40 |
座管直径英寸毫米
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
座管长度英寸毫米
|
345 | 345 | 345 | 345 | 345 | 345 | 345 |
最大座管插入深度英寸毫米
|
230 | 230 | 230 | 230 | 230 | 230 | 230 |
最小座管插入深度英寸毫米
|
110 | 110 | 110 | 110 | 110 | 110 | 110 |
车轮尺寸
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" |
刹车盘尺寸英寸毫米
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
