Road Bikes Race Ultimate CF SLX

Ultimate CF SLX 8 AXS

Name: Ultimate CF SLX 8 AXS
Brand: Canyon
Price: 48800.00 CNY
Availability: InStock
Rating: 5 (7 reviews)

¥48,800

Climbing. Descending. Cruising on the flats. This superb all-round road race bike is lightning fast in all scenarios, combining the legendary Ultimate frameset with SRAM's latest wireless Force shifting and power meter, sensational Zipp wheels, and our pro-proven adjustable PACE bar cockpit.

Material: Carbon (CF)
Weight: 7.42 kg

Reviews (7)

Colour: Metallic Black

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

¥48,800

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more

Delivery: Select frame size

Highlights Ultimate CF SLX 8 AXS

All-round perfection

Iconic performance

Whether climbing epic mountain passes, powering along the flat or navigating a technical descent, the Ultimate CF SLX delivers. With pinpoint handling, light weight and aerodynamics, this bike is your companion when the road heads upwards, downwards and everything in between.

Designing the new Ultimate

Canyon engineer, Lukas Birr, explains the design and development process that went into creating the Ultimate; a road bike that delivers the perfect balance. Lightweight, stiff and aerodynamic. This is our classic road race bike, evolved.

Key features

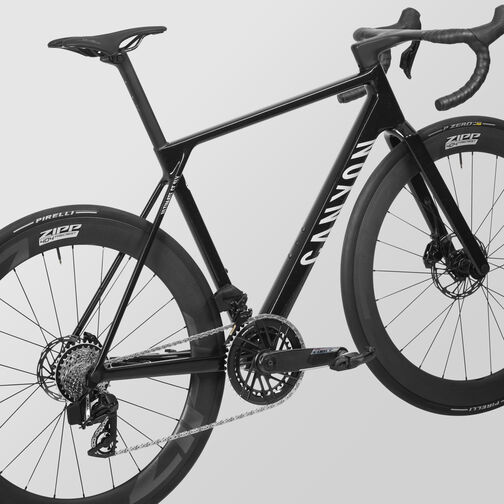

High-end carbon layup

To make a frame with a class-leading stiffness-to-weight ratio, you need to use an advanced mix of carbon fibre materials. We precisely optimised the frame’s wall thickness and chose the exact fibres required for incredible stiffness and huge strength.

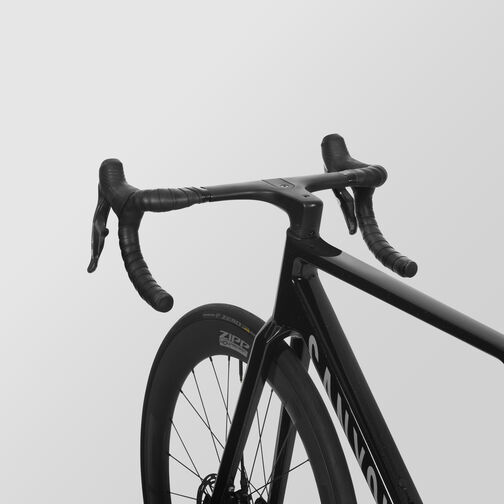

A versatile, adjustable carbon cockpit

Our groundbreaking CP0048 Aerocockpit puts a range of gear integration options and fit adjustments, all with no cutting required. You can adjust the width by 50 mm without cutting the brake hoses, and the height by 20 mm without cutting the fork steerer tube. Plus, the new Gear Groove interface provides a solid platform for mounting a range of accessories quickly, from aero bars to computer mounts (available separately).

PACE - Performance Adaptive Cockpit Ecosystem

From more upright and comfortable to low and aero, switch between cockpit setups in minutes using the Ultimate's interchangeable drops. As standard, the Ultimate uses the more balanced Classic Drops – with narrower Aero Drops available as an aftermarket extra for a slammed, compact, pro-inspired riding position with a longer effective reach.

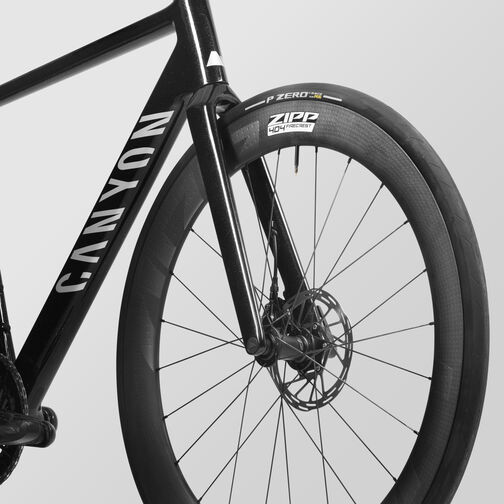

Aerodynamically optimised

On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.

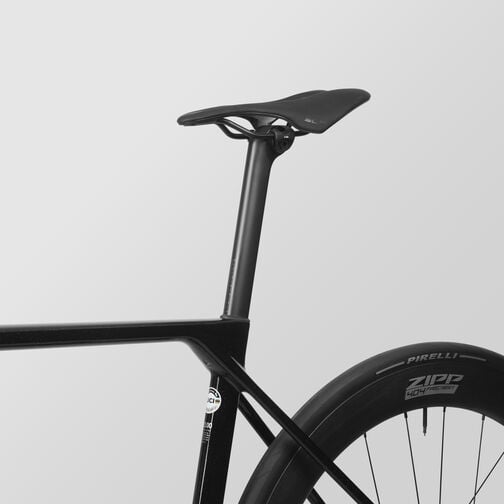

A beautifully refined aero carbon seatpost

The Ultimate looks even cleaner and sleeker with this clamp design. The clamp is hidden away in the seat tube, so there’s no extra drag. We combine it with a D-shaped seatpost to reduce air resistance in the seat tube area to an absolute minimum. Plus, it’s also simple to adjust so you can easily find your perfect riding position thanks to independent setback and tilt adjustment.

Components

Content is loading

Frame

Frame
- Canyon Ultimate CF SLX
- Our latest 5th-generation Ultimate frame.
- Axle dimension: 12x142 mm
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 885 g
Fork
- Canyon FK0146 CF Disc
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 367 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Force
- Weight: 306 g
Front Derailleur
- SRAM Force
Cassette
- SRAM Force
- Number of sprockets: 12
- Range: 10-33
Crank
- SRAM Force Powermeter
- Number of chainrings: 2
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
Chain
- SRAM Force E1

Brakes

Shift-/ Brake Lever
- SRAM Force AXS HRD
- Number of pistons: 2
- Weight: 398 g
Shift-/ Brake Lever
- SRAM Force AXS E1
- Number of pistons: 2

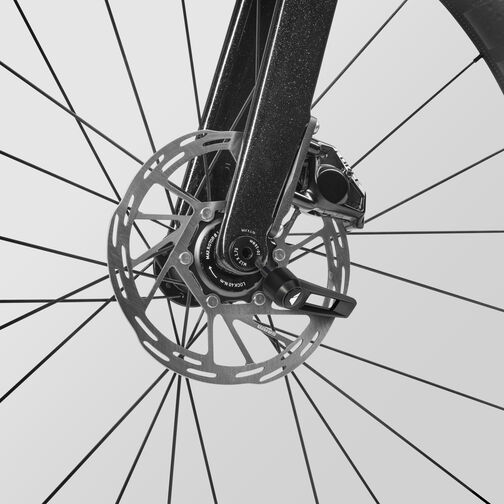

Brake Rotor
- SRAM Paceline
- Size: 140 mm
- Weight: 159 g
Brake Rotor
- SRAM Paceline
- Size: 160 mm
- Weight: 159 g

Wheels

Front Wheel
- Zipp 404 Firecrest Hookless
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 58 mm
- Inner width: 23 mm
- Rim material: Carbon
- Weight: 660 g
Rear Wheel
- Zipp 404 Firecrest Hookless
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 58 mm
- Inner width: 23 mm
- Rim material: Carbon
- Weight: 790 g
Tyre
- Pirelli P Zero Race RS
- Width: 28 mm
- Weight: 311 g
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm

Cockpit

Cockpit
- CP0048
- Aero carbon cockpit with 40 mm width and 15 mm height adjustment for a total of 12 distinct positions.
- Material: Carbon (CF)
- Weight: 224 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender: Unisex
- Weight: 181 g
Seatpost
- Canyon SP0094 CF
- Comfortable, compliant, lightweight carbon seatpost.
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 118 g
Seat Clamp
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Seat Height in mm (a)	622 - 722	652 - 752	682 - 782	712 - 812	742 - 842	772 - 872	802 - 902
Seat Tube Length in mm (b)	420	450	480	510	540	570	600
Top Tube Length in mm (c)	516	529	546	555	569	594	609
Head Tube Length in mm (d)	88	107	121	142	162	188	206
Head Tube Angle (e)	70°	71,2°	72,8°	73,25°	73,3°	73,5°	73,8°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	410	410	410	410	413	415	415
Wheel Base in mm (h)	975	979	982	988	1.003	1.029	1.042
Stack in mm (i)	498	520	539	560	580	606	624
Reach in mm (j)	372	378	390	393	401	419	429
Stand-over Height in mm (k)	720	748	775	801	828	851	874
Bottom Bracket Offset in mm (l)	73	73	73	73	73	73	73
Stack+ in mm	573	596	613	635	656	681	701
Reach+ in mm	428	446	459	473	490	509	529
Effective stack: Vertical distance between the bottom bracket and the hand position Learn more	587	607	622	642	663	688	706
Effective reach: Horizontal distance between the bottom bracket and the hand position Learn more	517	535	548	563	580	598	619

Component geometry

Detailed geometry table

Spacer in mm	20	20	20	20	20	20	20
Cockpit Dimensions in mm	80 - [370-420]	90 - [370-420]	90 - [370-420]	100 - [370-420]	110 - [370-420]	110 - [370-420]	120 - [370-420]
Crank Length in mm	165,0	170,0	170,0	172,5	172,5	175,0	175,0
Chainring Size	48/35	48/35	48/35	48/35	48/35	48/35	48/35
Seat Post Length in mm	349	349	349	349	349	349	349
Maximum Seat Post Insertion Depth in mm	195	195	195	195	195	195	195
Minimum Seat Post Insertion Depth in mm	95	95	95	95	95	95	95
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	140 / 140	160 / 140	160 / 140	160 / 140	160 / 160	160 / 160

Download PDF

Content is loading

Ultimate CF SLX 8 AXS support

Canyon Bikestand

¥439

Canyon CP0048 | CP0049 Aero Drops

¥1,699

Canyon GEAR GROOVE Aero Extension

¥3,699

-52%

Canyon Men's Signature Pro Lightweight Cycling Jersey

¥529

Original price ~~¥1,099~~

You save ¥570

CANYON//SRAM zondacrypto Women's Aero Jersey

¥869

New stock

Canyon CP0048 PACE T-Bar

¥1,499

Weather-ready

Canyon Ass Saver

¥39

Canyon Tire Lever

¥39

Canyon CORE Men's Bibshorts

¥799

Canyon Sports Bra

¥369

-50%

Canyon Women's Signature Pro Lightweight Bibshorts

¥799

Original price ~~¥1,599~~

You save ¥800

Weather-ready

Canyon PocketLight Rain Vest Race Fit

¥949

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
